    Kubota B7510

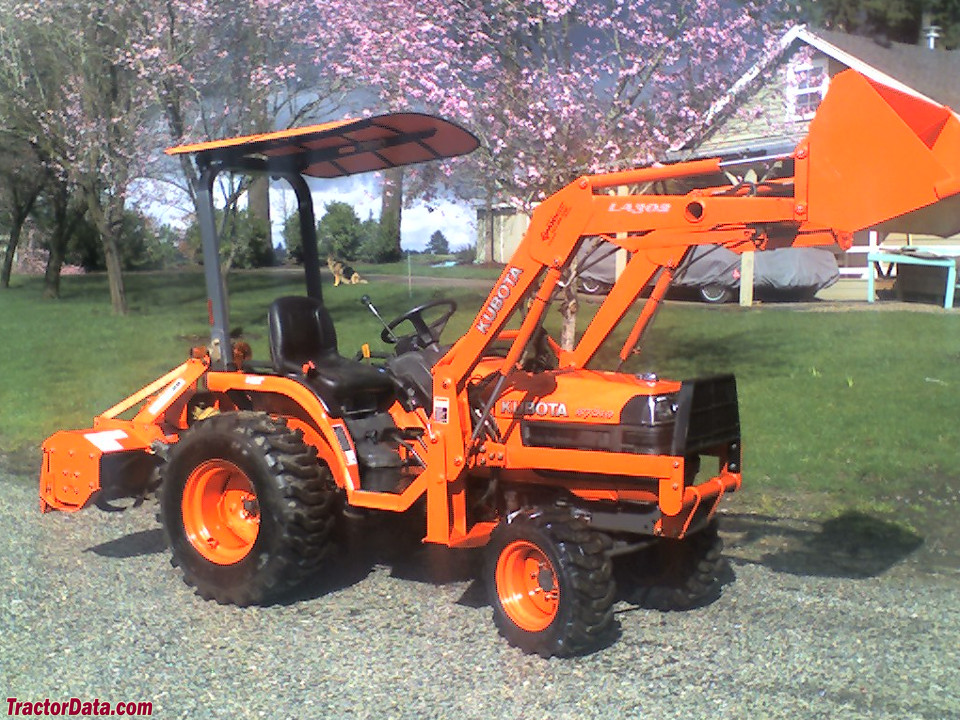

    Kubota B7510 tractor photo
    2004 - 2007   B7x10 Series
    Compact Utility tractor
    Previous model:Kubota B7500
    Next model:Kubota B2320
    Larger:Kubota B7610
    Smaller:Kubota B7410






    Production:

    Manufacturer:Kubota


    Variants:

    B7510DT:gear
    B7510DTN:narrow
    B7510HSD:hydrostatic


    Kubota B7510 Engine:

       Kubota 1.0L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:5.3 gal [20.1 L]


    3-Point Hitch:

    Rear Type:I
    Control:quarter inching valve
     position control (DTN)
    Rear lift (at ends):1,356 lbs [615 kg]
     1,655 lbs [750 kg] (DTN)
    Rear lift (at 24"/610mm):1,058 lbs [479 kg]
     1,655 lbs [750 kg] (DTN)


    Power Take-off (PTO):

    Rear PTO:transmission
     independent (hydro)
    Rear RPMs:540/960
    Mid RPMs:2500


    Dimensions & Tires:

    Wheelbase:59.1 inches [150 cm]
    Weight:1323 to 1367 pounds
    Front tire:6-12
    Rear tire:9.5-16
    full dimensions and tires ...


    B7510 Serial Numbers:


    - Serial numbers unknown -



    Kubota B7510 Power:

    Engine (gross):21 hp [15.7 kW]
    PTO (claimed):17 hp [12.7 kW]
     16 hp [11.9 kW] (hydro)


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:power assist
    Brakes:wet disc
    Cab:Two-post ROPS.


    Hydraulics:

    Type:open center
    Valves:1
     2 (DTN)
    Pump flow:4.4 gpm [16.7 lpm]
    Total flow:7 gpm [26.5 lpm]
    Steering flow:2.6 gpm [9.8 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Cold-cranking amps:433
    Volts:12
