Kubota L3130

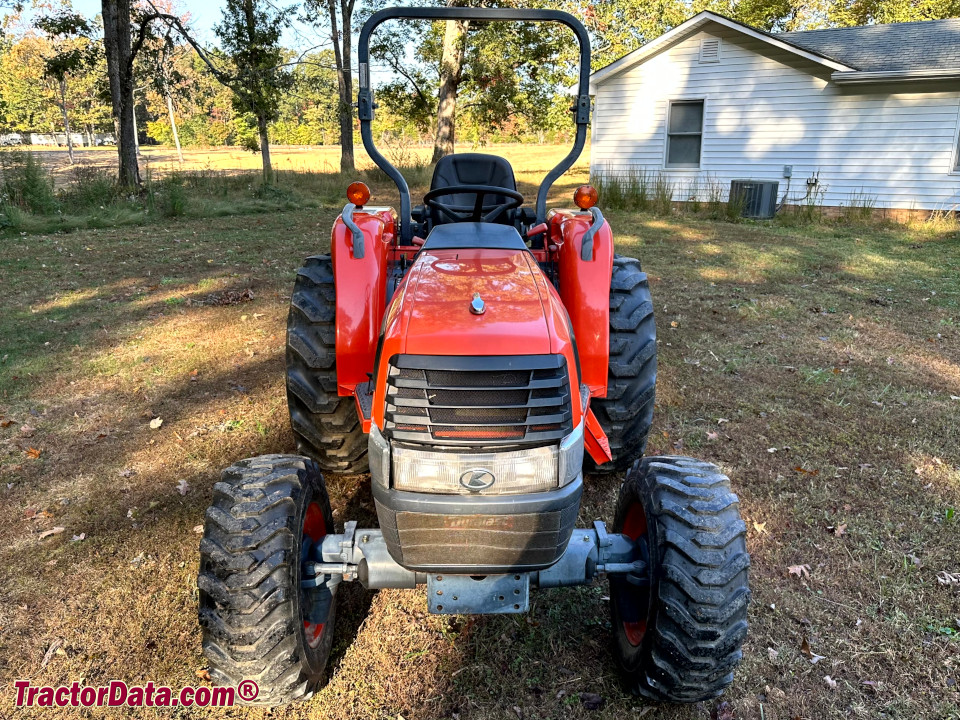

Kubota L3130 tractor photo
2003 - 2007
L30 Series
Compact Utility tractor
Series map:
L3130
L3430
32.1hp
35.1hp
Production
ManufacturerKubota
Compact Utility tractor
Variants
L3130F2WD
L3130DT4WD 8 speed
L3130GST4WD 12 speed
L3130HST4WD hydro
Kubota L3130 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank10.6 gal
40.1 L
Engine details ...
Kubota L3130 Transmissions
hydrostatic
8-speed fully synchronized
12-speed power shift
Transmission details ...
Kubota L3130 Power
Engine (gross)32.1 hp
23.9 kW
Engine (net)31 hp
23.1 kW
Gear PTO (claimed)25.5 hp
19.0 kW
Hydro PTO (claimed)24 hp
17.9 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Typeopen center
Valves3 OptOptional
Pump flow8.3 gpm
31.4 lpm
Total flow13.2 gpm
50.0 lpm
Steering flow4.9 gpm
18.5 lpm
Tractor hitch
Rear TypeI
Controlposition control with optional draft control
Rear lift (at 24"/610mm)2650 lbs
1202 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic
Rear PTO Type540 (1.375)
Mid PTOindependent OptOptional
Mid PTO Type2000
Dimensions & Tires
2WD Wheelbase71.3 inches
181 cm
4WD Wheelbase71.1 inches
180 cm
Weight3120 to 3305 pounds
Front tire6.00-16
2WD Rear tire12.4-24
Full dimensions and tires ...
Kubota L3130 attachments
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
L3130 Serial Number Location

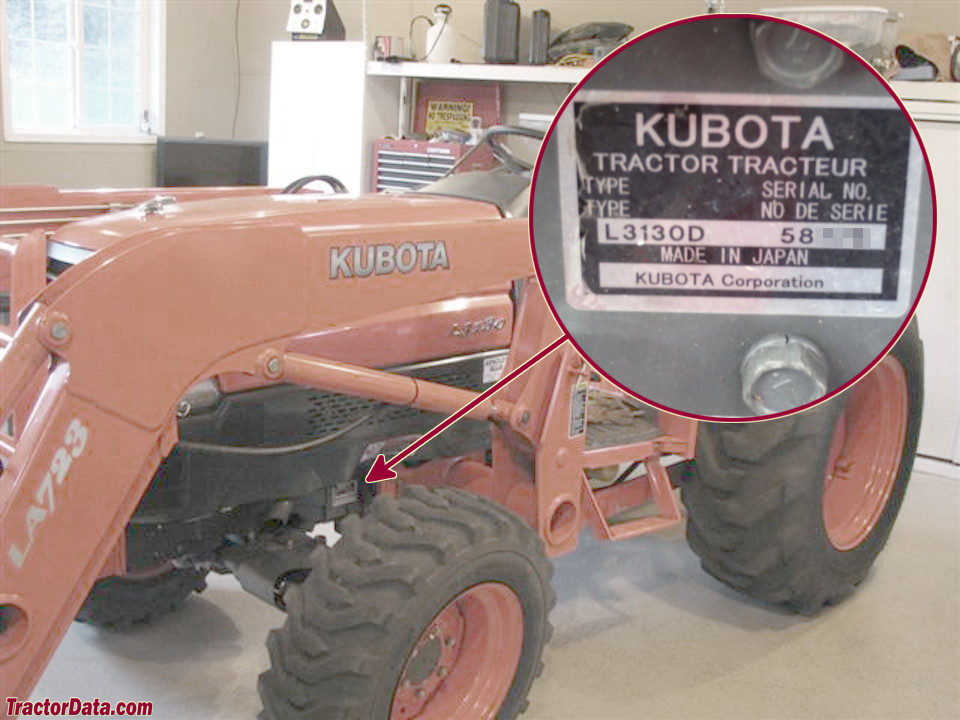

Kubota L3130 serial number location
Serial number decal on the left side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery volts12
References
L3130 references literature
Grand L 30 Series published in 2004, by Kubota*
*Publication contains known errors.
