    Kubota L5240

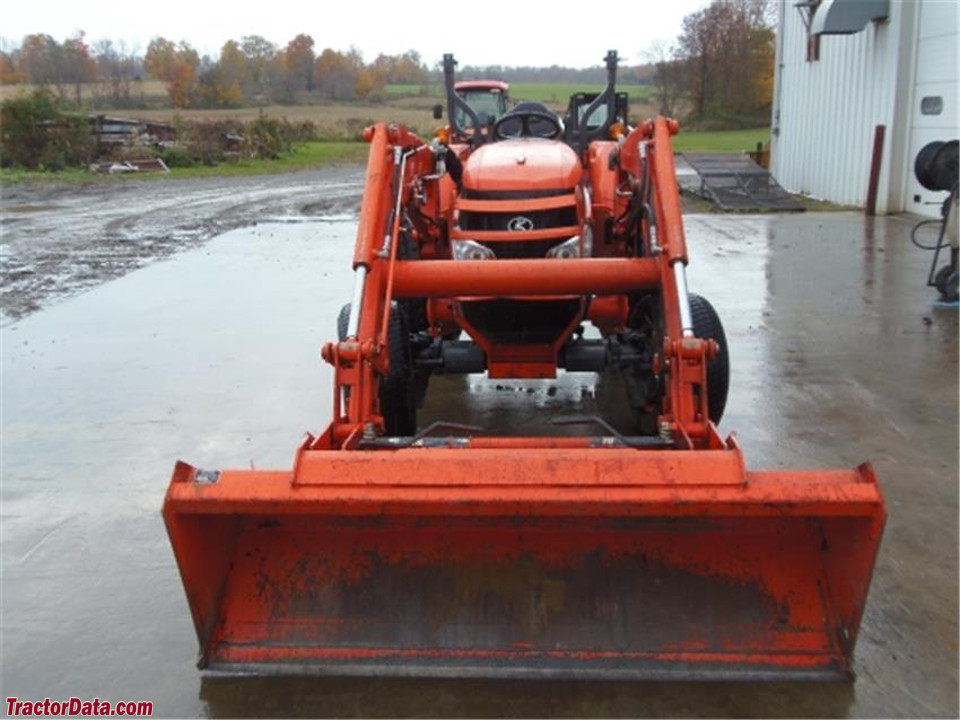

    Kubota L5240 tractor photo
    2007 -    L40 Series
    Previous model:Kubota L5030
    Larger:Kubota L5740
    Smaller:Kubota L5040





    The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.


    Production:

    Manufacturer:Kubota
    Original price (USD):$29,761 (2011)


    Variants:

    L5240HST:ROPS
    L5240HSTC:cab


    Kubota L5240 Engine:

       Kubota 2.4L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:14.3 gal [54.1 L]
    Hydraulic system:11.9 gal [45.0 L]
    Front axle:9.5 qts [9.0 L]


    3-Point Hitch:

    Rear Type:II/I
    Rear lift (at ends):3,860 lbs [1750 kg]
    Rear lift (at 24"/610mm):2,980 lbs [1351 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540
    Engine RPMs:540@2550
    Mid PTO:semi-independent (optional)
    Mid RPMs:2000


    Dimensions & Tires:

    Wheelbase:75.4 inches [191 cm]
    Weight:3902 to 4233 pounds
    Front tire:9.5-16
    Rear tire:14.9-26
    full dimensions and tires ...


    Kubota L5240 attachments:

     snowblower
     blade
     front-end loader
     backhoe
    all L5240 attachments ...


    L5240 Serial Numbers:


    - Serial numbers unknown -



    Kubota L5240 Power:

    Engine (gross):54 hp [40.3 kW]
    Engine (net):52 hp [38.8 kW]
    PTO (claimed):45 hp [33.6 kW]


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:hydrostatic power steering
    Brakes:mechanical wet disc
    Cab:Two-post ROPS. Grand CAB on HSTC.


    Hydraulics:

    Type:open center
    Capacity:11.9 gal [45.0 L]
    Valves:2 to 3
    Pump flow:9.8 gpm [37.1 lpm]
    Total flow:14.7 gpm [55.6 lpm]
    Steering flow:4.9 gpm [18.5 lpm]


    Electrical:

    Ground:negative
    Charging amps:45
     55 (cab)


    Battery:

    Number:1
    Cold-cranking amps:582
    Volts:12
