Tractors > Kubota > L4740

Kubota L4740

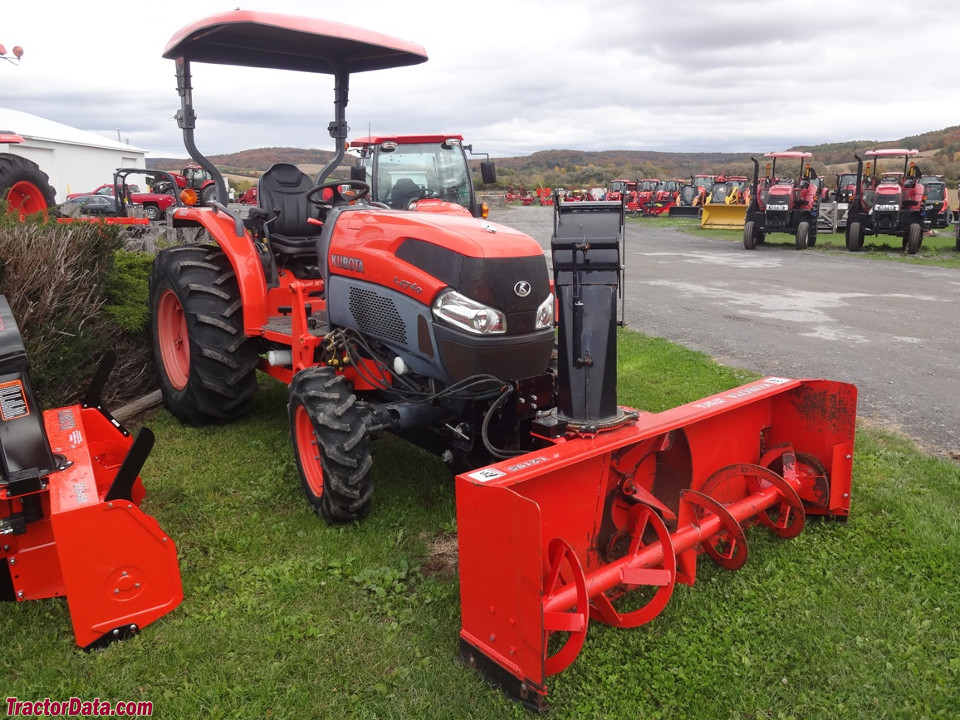

Kubota L4740 tractor photo
2007 - 2013   L40 Series
Compact Utility tractor
Previous model:Kubota L4630
Next model:Kubota L4760
Series next:Kubota L5040
Series back:Kubota L4240





The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.


Production:

Manufacturer:Kubota
Original price (USD):$27,259 (2011)


Variants:

L4740GST:gear
L4740HST:hydro
L4740HSTC:hydro cab


Kubota L4740 Engine:

   Kubota 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:14.3 gal [54.1 L]
Hydraulic system:11.4 gal [43.1 L]
Front axle:9.5 qts [9.0 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):3,860 lbs [1750 kg]
Rear lift (at 24"/610mm):2,756 lbs [1250 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Engine RPM:540@2550
Mid PTO:semi-independent (optional)
Mid RPM:2000


Dimensions & Tires:

Wheelbase:74.6 inches [189 cm]
Weight:3751 to 4001 pounds
Front tire:8.3-16
Rear tire:14.9-24
full dimensions and tires ...


Kubota L4740 attachments:

 snowblower
 blade
 front-end loader
 backhoe
all L4740 attachments ...


L4740 Serial Numbers:


- Serial numbers unknown -



Kubota L4740 Power:

Engine (gross):49 hp [36.5 kW]
Engine:47 hp [35.0 kW]
PTO (claimed):41.5 hp [30.9 kW]
 40 hp [29.8 kW] (hydro)


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power steering
Brakes:differential wet disc
Cab:Two-post ROPS. Grand CAB on L4740HSTC


Hydraulics:

Type:open center
Capacity:11.4 gal [43.1 L]
Valves:2 to 3
Pump flow:9.8 gpm [37.1 lpm]
Total flow:14.7 gpm [55.6 lpm]
Steering flow:4.9 gpm [18.5 lpm]


Electrical:

Ground:negative
Charging amps:45
 60 (cab)


Battery:

Number:1
Cold-cranking amps:582
Volts:12
