    Kubota L3540

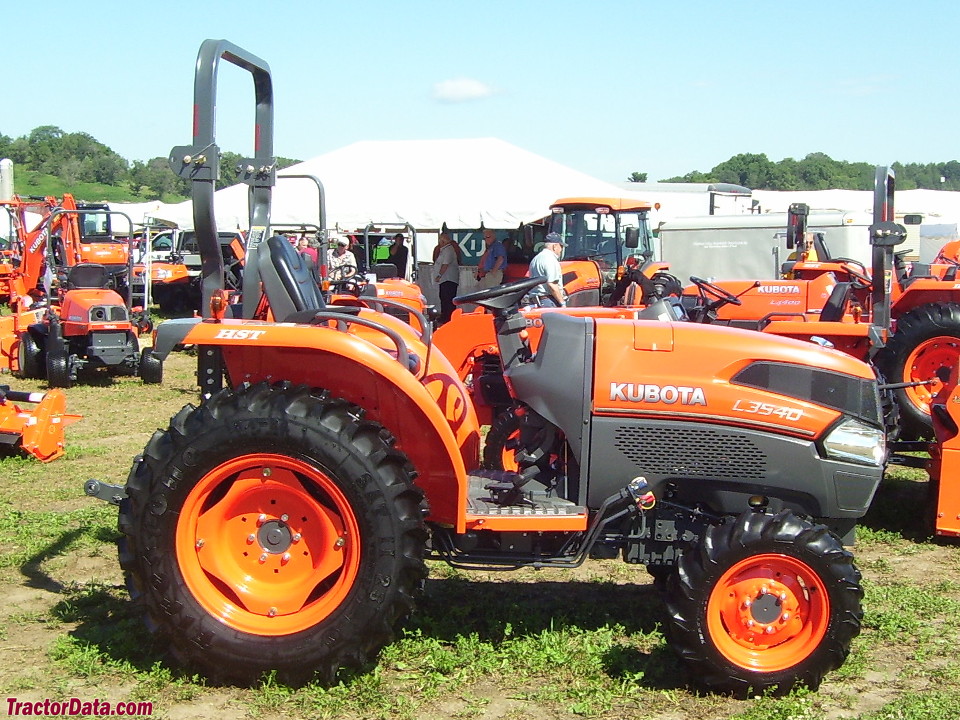

    Kubota L3540 tractor photo
    2007 - 2013   L40 Series
    Compact Utility tractor
    Previous model:Kubota L3430
    Next model:Kubota L3560
    Larger:Kubota L3940
    Smaller:Kubota L3240





    The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.


    Production:

    Manufacturer:Kubota
    Original price (USD):$21,157 (2011)


    Variants:

    L3540GST:gear
    L3540HST:hydro
    L3540HSTC:hydro cab


    Kubota L3540 Engine:

       Kubota 1.8L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:11.6 gal [43.9 L]
    Hydraulic system:11.1 gal [42.0 L]
    Front axle:6.9 qts [6.5 L]


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):3,750 lbs [1701 kg]
    Rear lift (at 24"/610mm):2.650 lbs [1 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540
    Engine RPMs:540@2550
    Mid PTO:semi-independent (optional)
    Mid RPMs:2000


    Dimensions & Tires:

    Wheelbase:71.1 inches [180 cm]
    Weight:3296 to 3395 pounds
    Front tire:7.2-16
    Rear tire:12.4-24
    full dimensions and tires ...


    Kubota L3540 attachments:

     mowing deck
     snowblower
     blade
     front-end loader
     backhoe
    all L3540 attachments ...


    L3540 Serial Numbers:


    - Serial numbers unknown -



    Kubota L3540 Power:

    Engine (gross):37 hp [27.6 kW]
    Engine (net):35 hp [26.1 kW]
    PTO (claimed):29.5 hp [22.0 kW]
     28 hp [20.9 kW] (hydro)


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Differential lock:standard
    Steering:hydrostatic power steering
    Brakes:mechanical wet disc
    Cab:Two-post ROPS. Grand CAB on L3540HSTC. Optional radio/CD player.


    Hydraulics:

    Type:open center
    Capacity:11.1 gal [42.0 L]
    Valves:2 to 3
    Pump flow:8.3 gpm [31.4 lpm]
    Total flow:13.2 gpm [50.0 lpm]
    Steering flow:4.9 gpm [18.5 lpm]


    Electrical:

    Ground:negative
    Charging amps:40
     55 (cab)


    Battery:

    Number:1
    Cold-cranking amps:582
    Volts:12
