J.I. Case CC
|
|
| Production | |
| Manufacturer | J.I. Case |
| Row-Crop tractor | |
| Total built | 28,656 |
| The Case CC was the row-crop version of the standard C. It was available in with tricycle front, adjustable wide front, and fixed wide front ends. | |
| Variants | |
| CC-3 | row-crop |
| CC-4 | wide-front |
| CCS | high crop |
| C | standard |
| J.I. Case CC Engine | |
| J.I. Case 4.3L 4-cyl gasoline | |
| Fuel tank | 18 gal 68.1 L |
| Aux. fuel | 2 gal 7.6 L |
 Engine details ... | |
| J.I. Case CC Transmission | |
| 3-speed gear | |
 Transmission details ... |
| J.I. Case CC Power | |
| Drawbar (claimed) | 17 hp 12.7 kW |
| Belt (claimed) | 27 hp 20.1 kW |
| Plows | 2 (14-inch) |
| Drawbar (tested) | 22.70 hp 16.9 kW |
| Belt (tested) | 28.97 hp 21.6 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Open operator station. | |

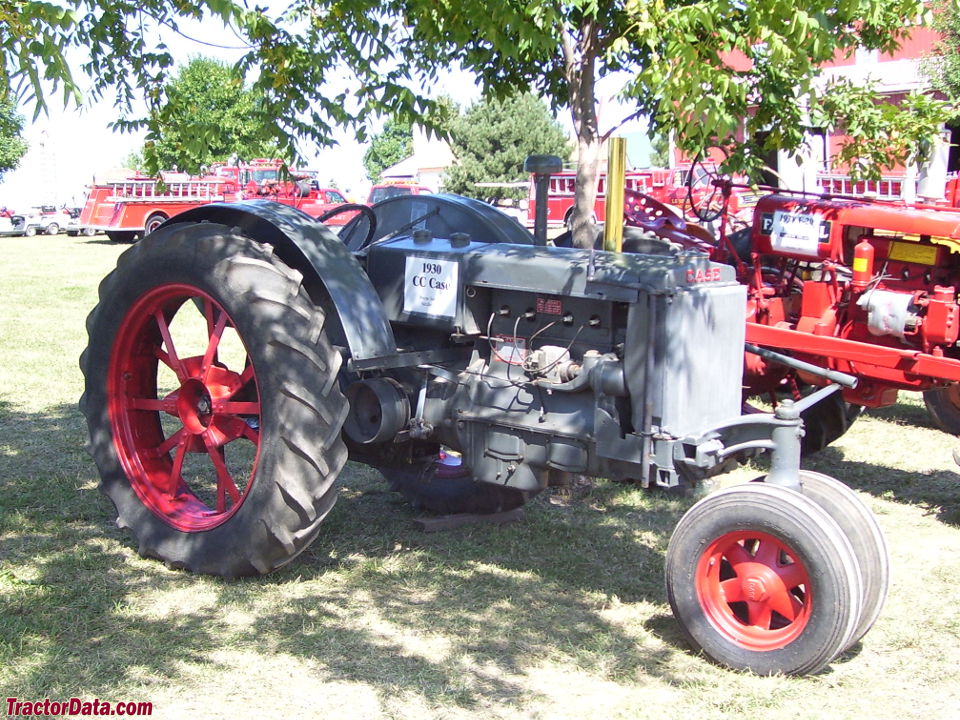

| Photos | |
 | |
 J.I. Case CC photos... | |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 536@1100 |
| Dimensions & Tires | |
| Weight | 4100 lbs 1859 kg |
| Front tire | 25x4 |
| Rear tire | 48x8 |
 Full dimensions and tires ... | |

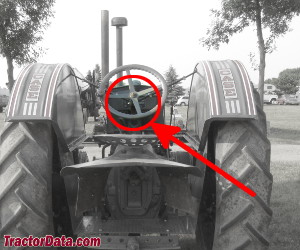

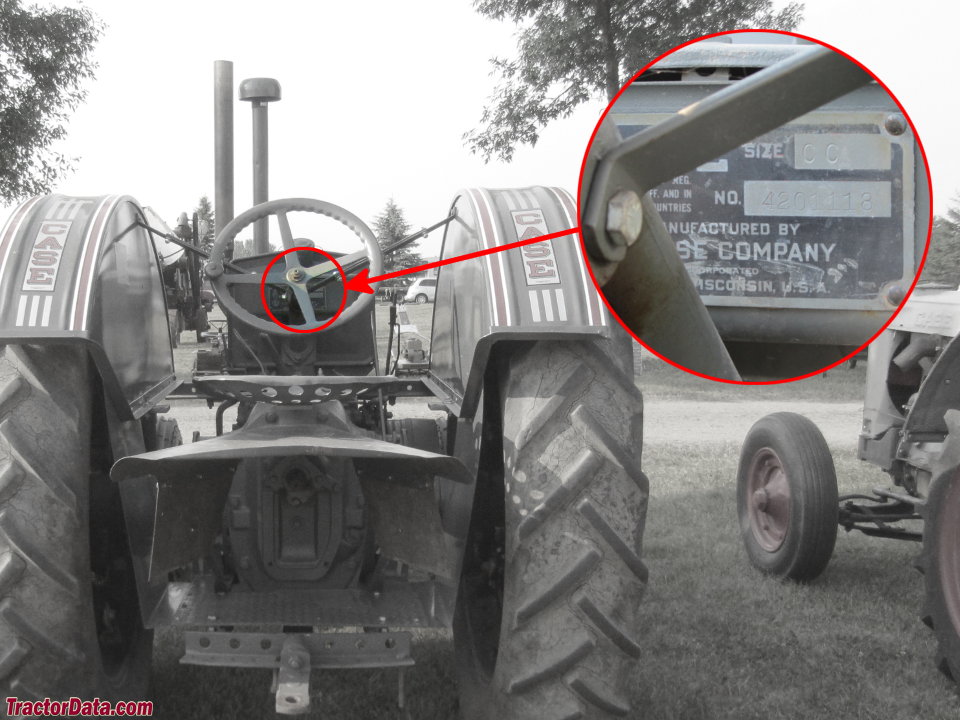

| CC Serial Number Location | |
 | |
| Serial number plate on the tractor's instrument panel. |
| CC Serial Numbers | |
| 1929 | 300201 |
| 1930 | 300301 |
| 1931 | 300401 |
| 1932 | 300501 |
| 1933 | 300601 |
| 1934 | 300701 |
| 1935 | 300801 |
| 1936 | 300901 |
| 1937 | 400001 |
| 1938 | 4200001 |
| 1939 | 4300001 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 11.75 inches 29 cm |
| Width | 6 inches 15 cm |
| RPM | 846 |
| Speed | 2500 ft/min 762.00 meters/min |
| References | |
 | |
| Illustrated Case Tractors Buyer's Guide by Peter Letourneau | |
| Full Steam Ahead - J.I. Case Tractors & Equipment 1842-1955 by David Erb | |
| New Power for a New Age published in 1935, by J.I. Case | |
| The New Model "CC" General Purpose Tractor published in 1930, by J.I. Case | |
| Model "CC" Tractor Manual (5259) published in 1937 |
