    Zetor 9540

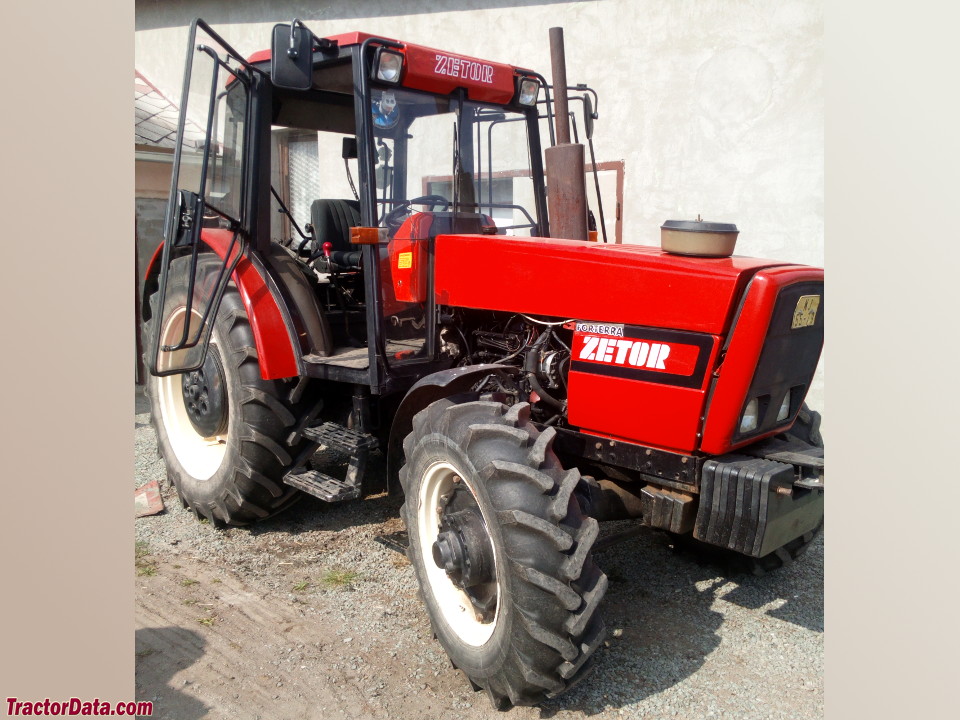

    Zetor 9540 tractor photo
    1991 - 1999
    Larger:Zetor 10540
    Smaller:Zetor 8540






    Production:

    Manufacturer:Zetor
    Factory:Brno, Czech Republic
    Original price (USD):$37,000 (1995)


    Variants:

    9520:2WD
    9540:4WD


    Zetor 9540 Engine:

       Zetor 4.2L 4-cyl diesel
    full engine details ...


    Capacity:



    3-Point Hitch:

    Rear Type:II
    Rear lift:8,598 lbs [3900 kg]
    Front Hitch:optional


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    Wheelbase:93.5 inches [237 cm]
    Weight:8,426 lbs [3822 kg]
    Front tire:12.4-24
    Rear tire:16.9-38
    full dimensions and tires ...


    9540 Serial Numbers:


    - Serial numbers unknown -



    Zetor 9540 Power:

    Engine:93 hp [69.4 kW]
    PTO (claimed):86 hp [64.1 kW]


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Cab standard with heater.


    Hydraulics:

    Type:open
    Pressure:2682 psi [184.9 bar]
    Valves:3
    Total flow:15.85 gpm [60.0 lpm]


    Electrical:

    Charging system:alternator
    Charging amps:55
    Charging volts:12


    Battery:

    Volts:12
