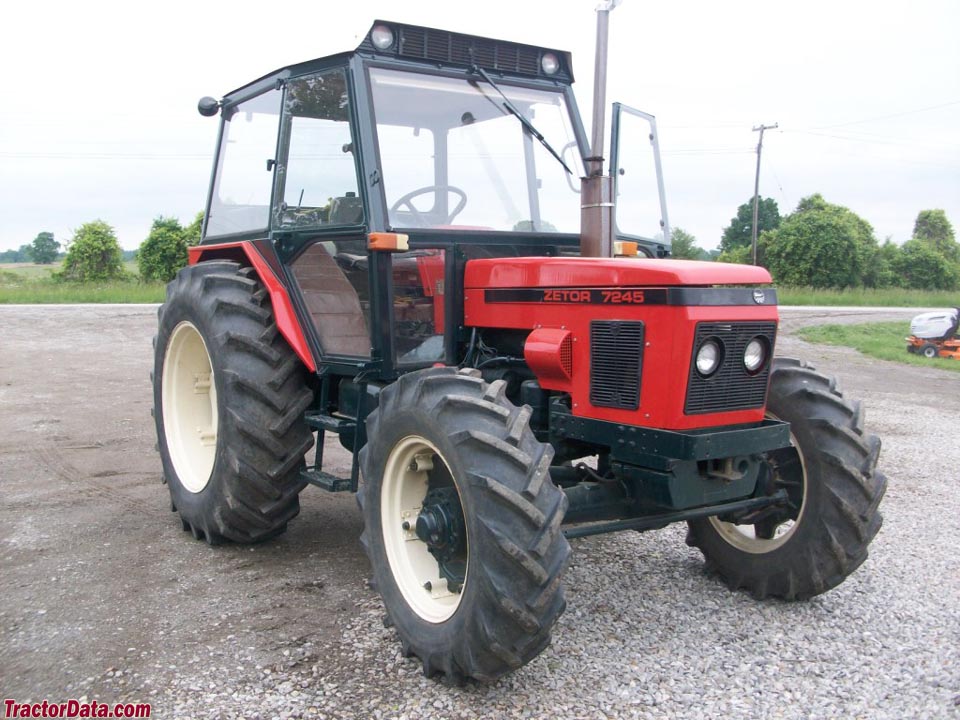

Zetor 7245
| | 1985 - 1993 |
| Row-Crop tractor |
|
Series map:
7211
7245
64.6hp
64.6hp
| Production |
| Manufacturer | Zetor
|
| Row-Crop tractor |
| Built in Brno, Czechoslovakia |
| Original price was $17,000 in 1989 |
| Zetor 7245 Power |
| Engine | 64.6 hp
48.2 kW
|
| Drawbar (claimed) | 53 hp
39.5 kW
|
| PTO (claimed) | 58 hp
43.3 kW
|
| Drawbar (tested) | 51.28 hp
38.2 kW
|
| PTO (tested) | 58.28 hp
43.5 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic drum brakes |
| Capacity |
| Fuel | 18.5 gal
70.0 L
|
| Hydraulic system | 26.5 gal
100.3 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 26.5 gal
100.3 L
|
| Valves | 2
|
| Pump flow | 8 gpm
30.3 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Rear lift | 5300 lbs
2404 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| 7245 Serial Numbers |
| Location: | Serial number plate on the right side of the dashboard.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 55
|
| Battery volts | 12
|
| References |
 |
| 5211 - 5245 - 6211 - 6245 - 7211 - 7245 published by Zetor |
| Owner's Instruction Manual 5211, 5245, 6211, 6245, 7211, 7245, 7711 and 7745 |
| 7211 - 7245 published by Zetor |
