CaseIH STX275 Engine



CaseIH STX275 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX275
STX325
275.0hp
325.0hp
Engine Detail
CDC 6TAA-8304
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement504.5 ci
8.3 L
Bore/Stroke4.488x5.315 inches
114 x 135 mm
Power275 hp
205.1 kW
Air cleanerdual paper elements
Compression17.1:1
Rated RPM2000
Torque1022 lb-ft
1385.8 Nm
Torque RPM1400
Starter volts12
Oil capacity25.2 qts
23.8 L

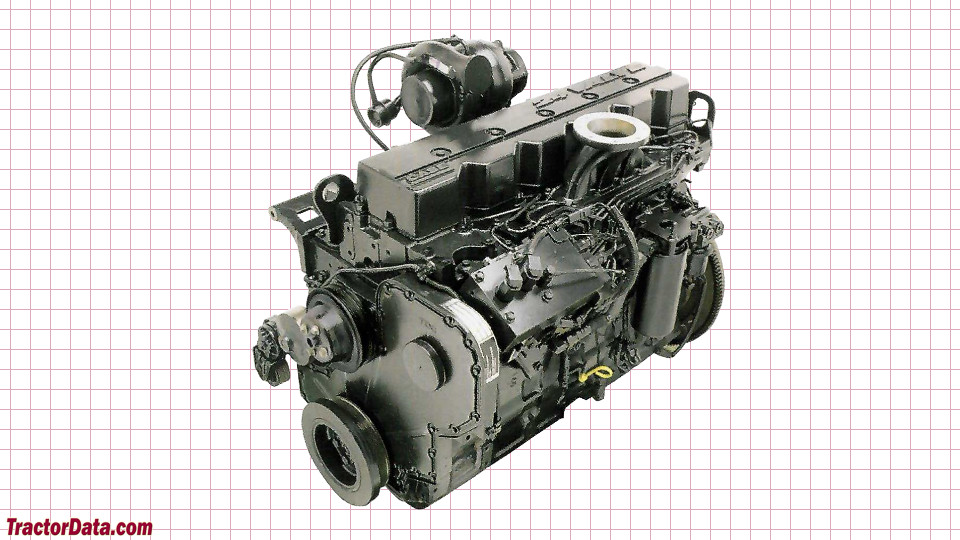

CaseIH STX275 Engine
CaseIH STX275 engine image
