CaseIH MXU135 - tests

CaseIH MXU135 tractor photo
2004 - 2006   MXU Maxxum Series
Utility tractor
Series back:CaseIH MXU125
more CaseIH MXU135 specifications...






OCED Tractor Test 2204:

Nebraska summary:496

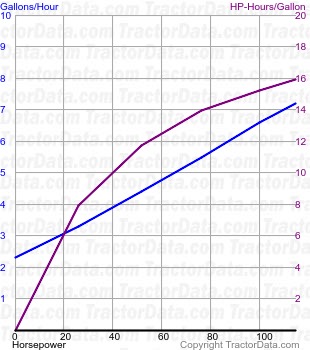

MXU135 fuel use from test 496
Test Date:June 1 - August 1, 2004
Type:Diesel 16-speed 4WD
PTO power (max):127.4 hp [95.0 kW]
PTO fuel use (max):7.2 gal/hour [27.3 l/hour]
PTO power (rated engine speed):114.5 hp [85.4 kW]
PTO fuel use (engine speed):7.2 gal/hour [27.3 l/hour]
PTO power (rated PTO speed):120.1 hp [89.6 kW]
PTO fuel use (PTO speed):7.2 gal/hour [27.3 l/hour]
Drawbar power (max):94.4 hp [70.4 kW]
Drawbar fuel use (max):7.0 gal/hour [26.5 l/hour]
Drawbar pull (max):11,755 lbs [5332 kg]
Max pull gear:3A
Test report:PDF file
