CaseIH MXM155 Maxxum Tests


CaseIH MXM155 Maxxum tractor photo
2002 - 2007
Maxxum Series
Row-Crop tractor
MX150
Series:MXM140MXM155 MaxxumMXM175
OCED Tractor Test 2121

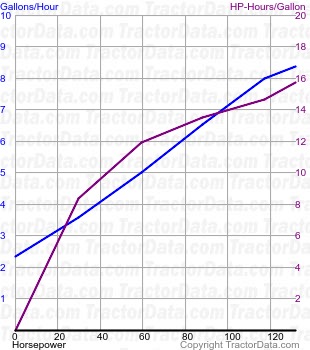

MXM155 Maxxum fuel use from test 435
OCED Tractor Test 2121
Diesel 18-speed 4WD
October 1, 2003 - February 1, 2004
Link: OCED Tractor Test 2121 file
PTO performance
Max power:133.8 hp
99.8 kW
Fuel use:8.2 gal/hour
31.0 l/hour
Power at rated engine speed:131.6 hp
98.1 kW
Fuel use:8.4 gal/hour
31.8 l/hour
Power at rated PTO speed:133.6 hp
99.6 kW
Fuel use:8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power:108.5 hp
80.9 kW
Fuel use:8.4 gal/hour
31.8 l/hour
Gear 2B used for power test.
Max pull:13,915 lbs
6311 kg
Gear 1A used for pull test.
