CaseIH JX1075C

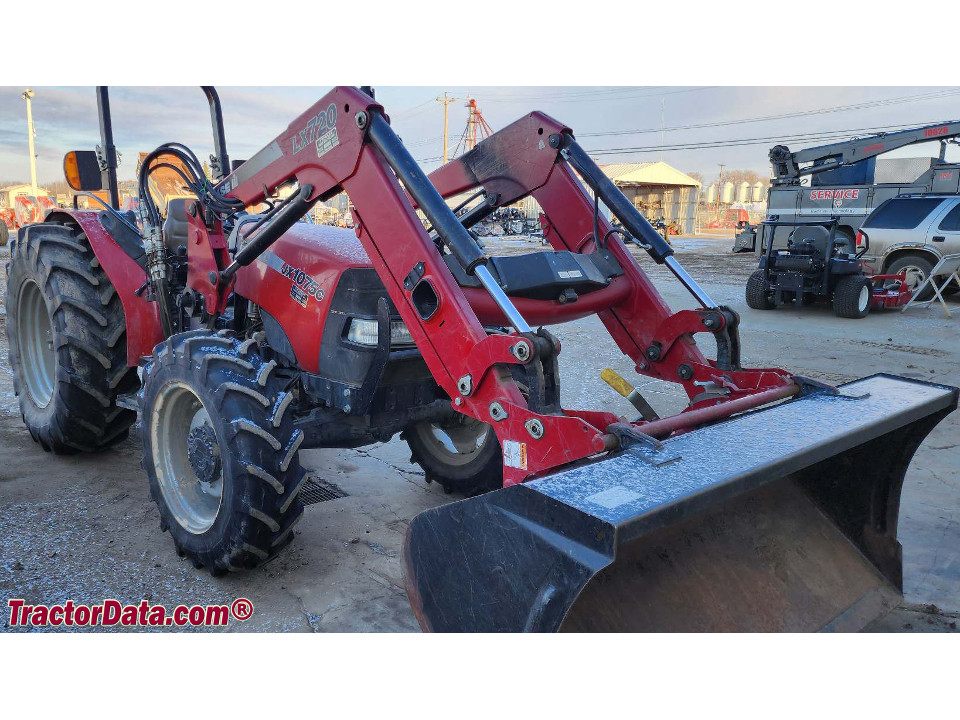

CaseIH JX1075C tractor photo
2004 - 2008
JXC Series
Utility tractor
Series map:
JX1070C
JX1075C
JX1085C
70.0hp
75.0hp
80.0hp
Production
ManufacturerCaseIH
Utility tractor
Built in Jesi, Italy
CaseIH JX1075C Engine
Iveco 2.9L 3-cyl diesel
Fuel tank19.5 gal
73.8 L
Engine details ...
CaseIH JX1075C Transmissions
16-speed mechanical shuttle
16-speed power shuttle
Transmission details ...
CaseIH JX1075C Power
Engine (gross)75 hp
55.9 kW
PTO (claimed)62 hp
46.2 kW
Drawbar (tested)55.3 hp
41.2 kW
PTO (tested)64.5 hp
48.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.
Hydraulics
Typeopen center
Pressure2755 psi
190.0 bar
Valves1 to 4
Pump flow16.9 gpm
64.0 lpm
Steering flow9.4 gpm
35.6 lpm
Tractor hitch
Rear TypeII
Controlmechanical lower-link draft sensing.
Rear lift3960 lbs
1796 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchmechanical dry disc
Rear RPM540 (1.375)
Dimensions & Tires
2WD Wheelbase83.9 inches
213 cm
4WD Wheelbase81.3 inches
206 cm
Weight6085 to 6615 pounds
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps65
Cab Charging amps85
Battery CCA730
Battery volts12
