CaseIH JX1075C Tests


CaseIH JX1075C tractor photo
2004 - 2008
JXC Series
Utility tractor
Series:JX1070CJX1075CJX1085C
Farmall 75C
OCED Tractor Test 2114

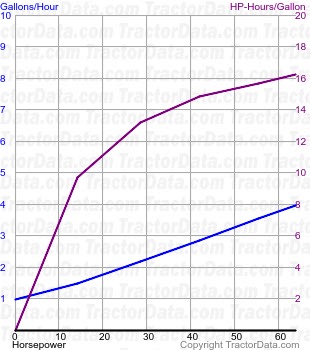

JX1075C fuel use from test 452
OCED Tractor Test 2114
Diesel 16-speed 4WD
October 1, 2003 - February 1, 2004
Link: OCED Tractor Test 2114 file
PTO performance
Max power:64.5 hp
48.1 kW
Fuel use:4.0 gal/hour
15.1 l/hour
Power at rated engine speed:63.8 hp
47.6 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Power at rated PTO speed:63.7 hp
47.5 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power:55.3 hp
41.2 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Gear 12 used for power test.
