CaseIH JX1070C Tests

CaseIH JX1070C tractor photo
2004 - 2008
JXC Series
Utility tractor
OCED Tractor Test 2162

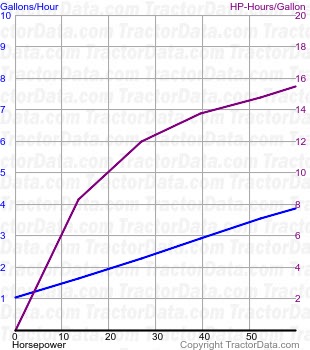

JX1070C fuel use from test 451
OCED Tractor Test 2162
Diesel 16-speed 4WD
February 1 - May 1, 2004
Link: OCED Tractor Test 2162 file
PTO performance
Max power:60.6 hp
45.2 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Power at rated engine speed:59.8 hp
44.6 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Power at rated PTO speed:60.2 hp
44.9 kW
Fuel use:3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power:51.0 hp
38.0 kW
Fuel use:3.7 gal/hour
14.0 l/hour
Gear 10 used for power test.
