Tractors > CaseIH > Farmall DX25E

CaseIH Farmall DX25E

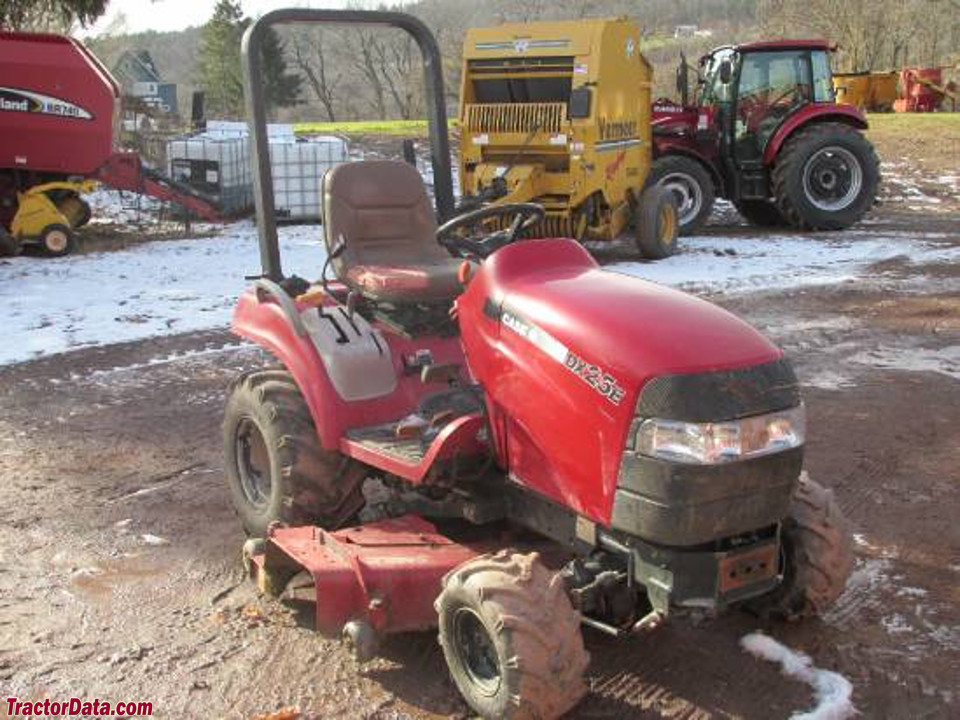

CaseIH Farmall DX25E tractor photo
2005 - 2007   DXE Series
Sub-Compact Utility tractor






Production:

Manufacturer:CaseIH


CaseIH DX25E Engine:

   Shibaura 1.0L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.9 gal [29.9 L]


3-Point Hitch:

Rear Type:I
Rear lift:700 lbs [317 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Wheelbase:55 inches [139 cm]
Weight:1323 lbs [600 kg]
full dimensions and tires ...


CaseIH DX25E attachments:

 front-end loader
all DX25E attachments ...


DX25E Serial Numbers:


- Serial numbers unknown -



CaseIH DX25E Power:

Engine:25 hp [18.6 kW]
PTO (claimed):19 hp [14.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Two-post ROPS.


Hydraulics:

Type:open center
Pump flow:5.5 gpm [20.8 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
