Tractors > John Deere > 8420

John Deere 8420 - transmission

John Deere 8420 tractor photo
2002 - 2005   8020 Series
Row-Crop tractor
Previous model:John Deere 8410
Next model:John Deere 8430
Series next:John Deere 8520
Series back:John Deere 8320
more John Deere 8420 specifications...






Transmission:

Transmission:John Deere PowerShift
Type:full power shift
Gears:16 forward and 4 reverse
Clutch:hydraulic wet disc
Oil capacity:148 qts [140.1 L]
 158.4 qts [149.9 L] (ILS)
Full power shift transmission with single shift lever with display on cab corner post. Tractor begins in 7 (forward) and 2 (reverse) on start up. Clutch pedal may be used to pre-select a gear by holding clutch and pressing lever until desired gear is reached. Automatic PowerShift (APS) allows automated shifting to match load.

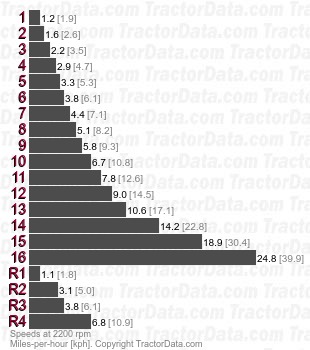

Speeds:With 18.4R46 rear tires.
8420 PowerShift full power shift speeds
