John Deere 6220 Transmission


John Deere 6220 tractor photo
2002 - 2007
Utility tractor
6210
Series:612062206320
Transmissions overview
12-speed fully synchronized
16-speed power shuttle
16-speed partial power shift
24-speed partial power shift
Transmission
Transmission:John Deere SyncroPlus
Type:fully synchronized
Gears:12 forward and 4 reverse
Clutch:wet disc
Oil capacity:55 qts
52.1 L
Oil type:
JD HyGard

Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds for a total of 21-forward and 7-reverse.
Speeds
With 18.4x30 R1 rear tires.

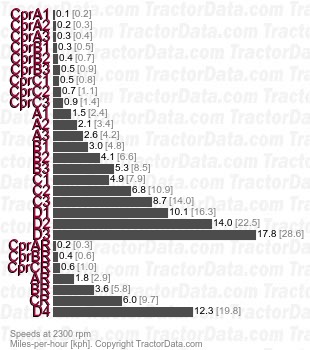

6220 SyncroPlus fully synchronized speeds
Transmission
Transmission:John Deere SyncroPlus Power Reverser
Type:power shuttle
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:55 qts
52.1 L
Oil type:
JD HyGard

Four gears (1-4) in four ranges (A-D) with left-hand reverser. Gear and range shifts are synchronized. Power shuttle shifting between forward and reverse. Only available on open-station (ROPS) equipped tractors.
Speeds
With 18.4x30 R1 rear tires.

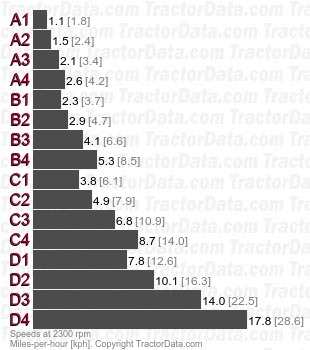

6220 SyncroPlus Power Reverser power shuttle speeds
Transmission
Transmission:John Deere PowrQuad
Type:partial power shift
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:51.8 qts
49.0 L
Oil type:
JD HyGard

Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional twelve speeds for 28 forward and reverse. The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting.
Speeds
With 18.4x30 R1 rear tires.

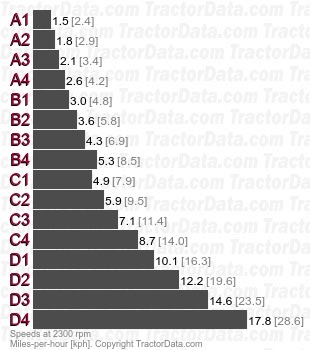

6220 PowrQuad partial power shift speeds
Transmission
Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Oil capacity:52.8 qts
50.0 L
Oil type:
JD HyGard

Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch.
Speeds
With 18.4x30 R1 rear tires.

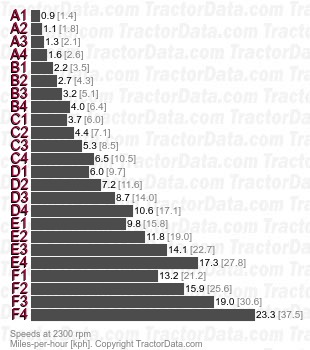

6220 PowrQuad Plus partial power shift speeds
