John Deere 6120 Engine


John Deere 6120 tractor photo
2002 - 2007
Utility tractor
6110
Series:61206220
Engine Detail
John Deere PowerTech 4045TL070
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:Tier I
Power:80 hp
59.7 kW
Air cleaner:dry
Rated RPM:2300
Idle RPM:875-2510
Operating RPM:1000-2300
Torque:195 lb-ft
264.4 Nm
Torque RPM:1500
Firing order:1-3-4-2
Starter volts:12
Starter power:4 hp
3.0 kW
Coolant capacity:14.4 qts
13.6 L
Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
Engine Oil

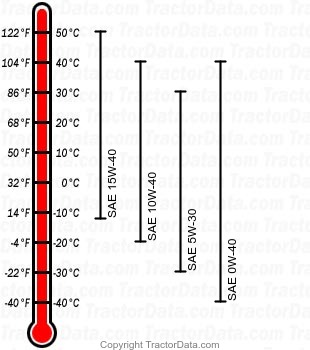

6120 diesel engine oil chart
Oil capacity:16.8 qts
15.9 L
Oil change:500 h

Engine Detail
John Deere PowerTech 4045TL271
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:Tier II
Power:80 hp
59.7 kW
Air cleaner:dry
Rated RPM:2300
Idle RPM:845-2465
Operating RPM:1000-2300
Torque:256 lb-ft
347.1 Nm
Torque RPM:1500
Firing order:1-3-4-2
Coolant capacity:14.4 qts
13.6 L
Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
Engine Oil
6120 diesel engine oil chart
Oil capacity:16.8 qts
15.9 L
Oil change:500 h
