John Deere 6415 Transmission


John Deere 6415 tractor photo
2003 - 2007
6015 Series
Utility tractor
Series:621564156615
Transmissions overview
12-speed fully synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission
Transmission:SyncroPlus
Type:fully synchronized
Gears:12 forward and 4 reverse
Clutch:wet disc
Three synchronized gears (1-3) plus reverse (R) in four synchronized ranges (A-D).
Speeds
With 18.4-34 rear tires.

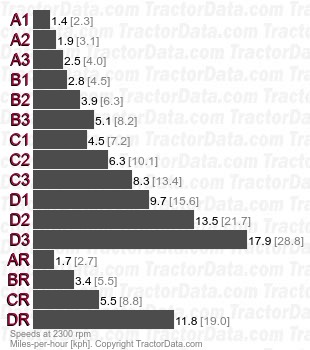

6415 SyncroPlus fully synchronized speeds
Transmission
Transmission:SyncroPlus Reverser
Type:power shuttle
Gears:16 forward and reverse
Clutch:wet disc
Reverser option adds left-hand power shuttle lever to SyncroPlus transmission. Four synchronized gears (1-4) in four synchronized ranges (A-D) with shuttle lever.
Speeds
With 18.4-34 rear tires. Reverse speeds are 20% faster than forward speeds.

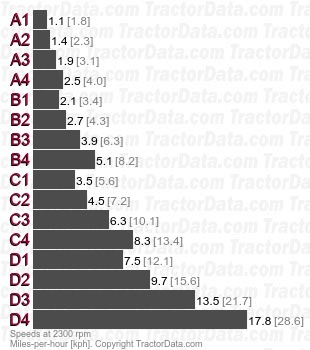

6415 SyncroPlus Reverser power shuttle speeds
Transmission
Transmission:PowrQuad
Type:four-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle lever.
Speeds
With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds.

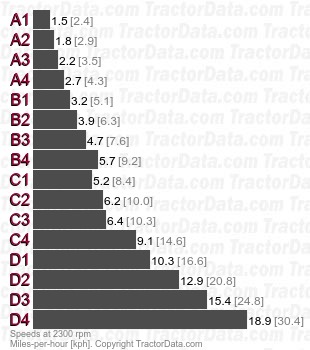

6415 PowrQuad four-speed power shift speeds
