John Deere 3520 - transmission

John Deere 3520 tractor photo
2005 - 2013   3000 Twenty Series
Compact Utility tractor
Next model:John Deere 3039R
Series next:John Deere 3720
Series back:John Deere 3320
more John Deere 3520 specifications...






Transmission:

Transmission:PowrReverser
Type:partially synchronized with power shuttle
Gears:12 forward and reverse
Clutch:112.5mm wet disc
Standard transmission, not available with cab. Four speeds with three ranges and reverser lever. Speed changes are synchronized with clutch pedal. Tractor must be stopped, and clutch used, to shift range. Left-hand reverser may be used without clutching.
Speeds:With 11.2-24 rear tires.

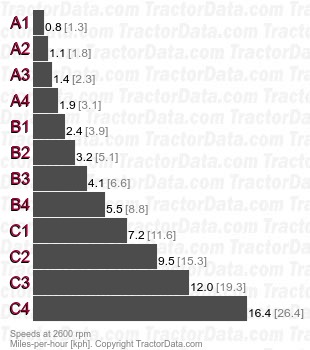

3520 PowrReverser partially synchronized with power shuttle speeds
John Deere 3520 PowrReverser transmission photo



Transmission:

Transmission:Sauer-Danfoss eHydro
Type:hydrostatic
Gears:infinite (3-range) forward and reverse

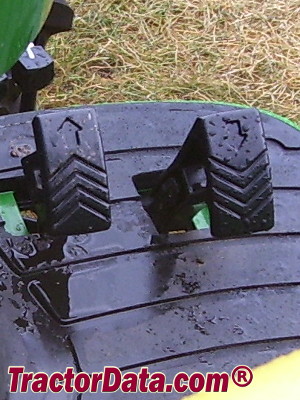

Controlled by two foot pedals and range shift lever. Tractor must be stopped before shifting ranges. Cruise control standard. SpeedMatch allows maximum speed to be limited. MotionMatch allows acceleration rate to be set. LoadMatch allows engine RPMs to be set, tractor will adjust speed to maintain RPMs.
Speeds:With 11.2-24 rear tires.

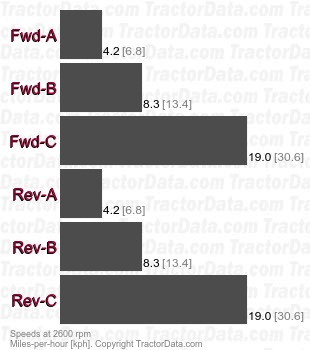

3520 eHydro hydrostatic speeds


Transmission:

Transmission:eHydro AutoHST
Type:hydrostatic
Gears:infinite (3-range) forward and reverse

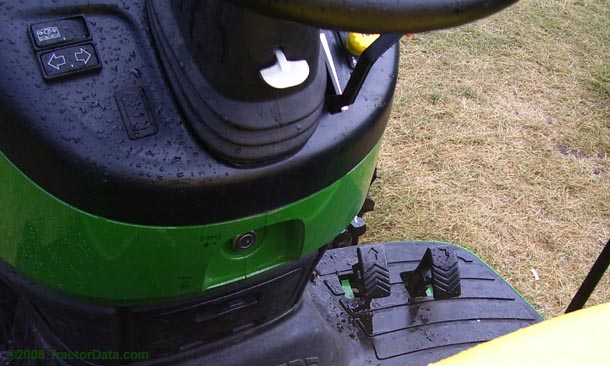

AutoHST provides an automobile-style control to the eHydro transmission. A single foot pedal controls engine RPMs and transmission speed, with a column-mounted shifter to select forward, neutral, or reverse.
