J.I. Case 610-B Transmission
|
|
| 350 ↑ | |
| Series: | 610-B |
| Transmissions overview | |
| 8-speed torque converter | |
| 8-speed shuttle |
| Transmission | |
| Transmission: | Case-O-Matic |
| Type: | torque converter |
| Gears: | 8 forward and 2 reverse |
| Oil capacity: | 44 qts 41.6 L (gearbox) |
| 16 qts 15.1 L (torque converter) | |
| Speeds | |

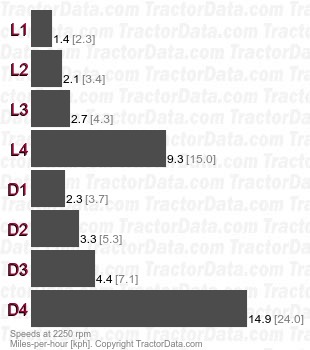

| With 11-28 rear tires and torque converter engaged. Speeds are 25% faster with torque converter locked. | |
|
| Transmission | |
| Type: | shuttle |
| Gears: | 8 forward and reverse |
| Oil capacity: | 44 qts 41.6 L (gearbox) |
| 16 qts 15.1 L (torque converter) | |

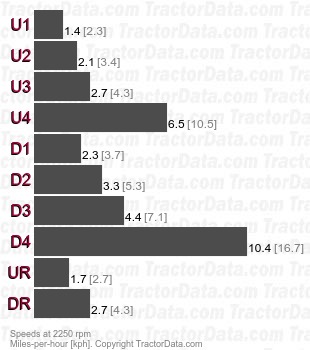

| Speeds | |
| With 11-28 rear tires and torque converter engaged. Speeds are 25% faster with torque converter locked. Reverse speeds are 24% faster than forward. | |
|
