| | 1973 - 1979 |
| Utility tractor |
|
Series map:
1130
1630
40.0kw
44.0kw
| Transmission options |
| 8-speed partially synchronized |
| 16-speed two-speed power shift |
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Four synchronized gear in two ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range. |
| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash. |

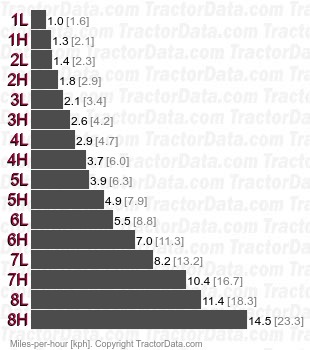

| Speeds |
|
