John Deere 9620T
| | 2004 - 2007 |
| 9020 Series | | Agricultural Crawler tractor |
|
Series map:
9520T
9620T
450.0hp
500.0hp
| Production |
| Manufacturer | John Deere
|
| Agricultural Crawler tractor |
| Built in Waterloo, Iowa, USA |
| Variants |
| 9620 | wheeled tractor
|
| John Deere 9620T Power |
| Engine | 500 hp
372.9 kW
|
| PTO (claimed) | 302 hp
225.2 kW
|
| Drawbar (tested) | 381.79 hp
284.7 kW
|
| PTO (tested) | 374.40 hp
279.2 kW
|
 Performance test details ... |
| Mechanical |
| Drive | crawler
|
| Steering | electro-hydraulic power
|
| Hydraulic wet disc brakes |
| Cab standard. |
| Capacity |
| Fuel | 320 gal
1211.2 L
|
| Hydraulic system | 27 gal
102.2 L
|
| | 27.5 gal (with 3pt)
104.1 L
|
| Hydraulics |
| Type | closed center pressure/flow compensated
|
| Capacity | 27 gal
102.2 L
|
| | 27.5 gal (with 3pt)
104.1 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4 or 5
|
| Pump flow | 30 gpm (one SCV)
113.6 lpm
|
| Total flow | 48 gpm
181.7 lpm
|
| Tractor hitch |
| Rear Type | III, IV/IVN
|
| Rear lift | 13,871 lbs
6291 kg
|
| | 14,445 lbsOptOptional
6552 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|

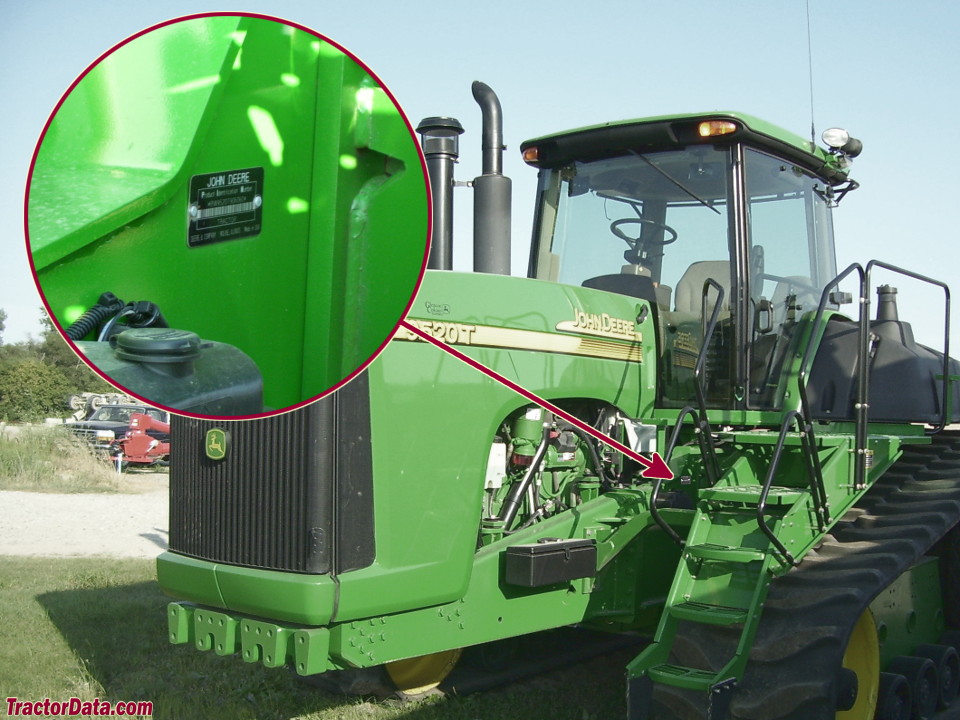

| 9620T Serial Number Location |
 |
| Serial number plate on the left side of the tractor frame. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 140
|
| Batteries | 3
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 9320T, 9420T, 9520T and 9620T (OMAR288229) published in 2006 |
