Tractors > John Deere > 9220

John Deere 9220 - transmission

John Deere 9220 tractor photo
2002 - 2007   9020 Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 9200
Next model:John Deere 9230
Series next:John Deere 9320
Series back:John Deere 9120
more John Deere 9220 specifications...






Transmission:

Transmission:John Deere PowerSync
Type:partial power shift
Gears:24 forward and 6 reverse
Oil capacity:136 qts [128.7 L]
 140 qts [132.5 L] (with PTO)
Four ranges (A-D) and three gears (1-3) with high-low power shift. Synchronized shifting between ranges A-B, B-C, and C-D. Gear shifts are synchronized between 1-R, 1-2, and 2-3. Reverse gear does not operate in D range.
Speeds:With 620/70R42 tires.
9220 PowerSync partial power shift speeds


Transmission:

Transmission:John Deere Powershift
Type:full power shift
Gears:18 forward and 6 reverse
Speeds:With 620/70R42 tires.

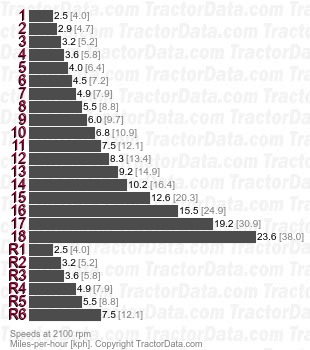

9220 Powershift full power shift speeds
