John Deere 9320 - tests

John Deere 9320 tractor photo
2002 - 2007   9020 Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 9300
Next model:John Deere 9330
Series next:John Deere 9420
Series back:John Deere 9220
more John Deere 9320 specifications...






OCED Tractor Test 9320:

Nebraska summary:369

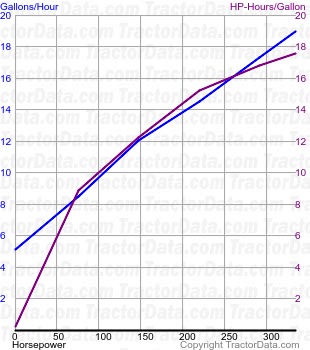

9320 fuel use from test 369
Test Date:April 9 - May 31, 2002
Type:Diesel 18-speed 4WD
PTO power (max):377.55 hp [281.5 kW]
PTO fuel use (max):20.9 gal/hour [79.1 l/hour]
PTO power (rated engine speed):333.43 hp [248.6 kW]
PTO fuel use (engine speed):19.0 gal/hour [71.9 l/hour]
PTO power (rated PTO speed):364.94 hp [272.1 kW]
PTO fuel use (PTO speed):20.0 gal/hour [75.7 l/hour]
Drawbar power (max):304.37 hp [227.0 kW]
Drawbar fuel use (max):19.0 gal/hour [71.9 l/hour]
Drawbar pull (max):38,397 lbs [17416 kg]
Max pull gear:1
Test report:PDF file
