Versatile 150

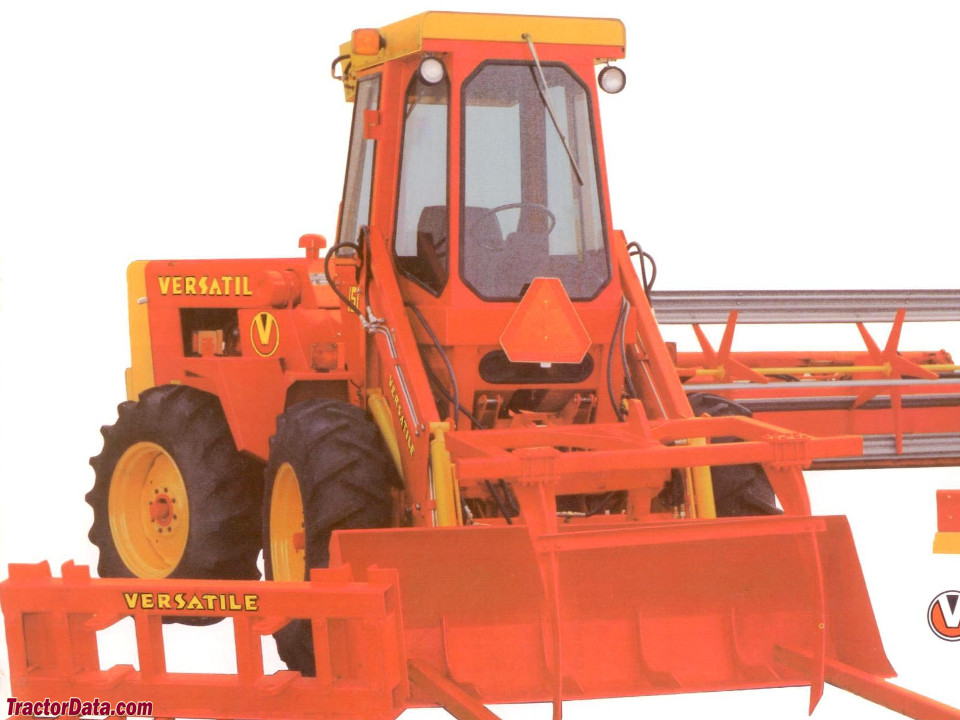

Versatile 150 tractor photo
1977 - 1981
Series:150
160
Production
Manufacturer:Versatile
Factory:Winnipeg, Manitoba, Canada
Original price:$21,500 (1981 )
Versatile 150 Power
Engine:71 hp
52.9 kW
PTO (claimed):54 hp
40.3 kW
Versatile 150 Engine
Perkins 3.9L 4-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 articulated 4WD
Steering:hydrostatic power
Brakes:differential hydraulic disc
Cab:ROPS standard. Optional isolated cab with air-conditioning.
Transmission:hydrostatic
Transmission details ...
Capacity
Fuel:34 gal
128.7 L
Hydraulic system:40 gal
151.4 L
Hydraulics
Type:open center
Capacity:40 gal
151.4 L
Pressure:2250 psi
155.1 bar
Valves:2 or 3
Pump flow:15 gpm
56.8 lpm
Steering flow:5 gpm
18.9 lpm
Tractor hitch
Rear Type:II
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Wheelbase:80 inches
203 cm
Weight:7,800 lbs
3538 kg
Front tire:11.2x24
Rear tire:11.2x24
Full dimensions and tires ...
150 Serial Numbers
Location:Serial number plate on the floor of the cab, near the base of the tractor seat.
1977:000028
1978:000425
1979:------
1980:000750
1981:001150
Final:001549

how to read serial numbers...

Electrical
Ground:negative
Charging system:Delco alternator
Charging amps:72
Batteries:2
Battery CCA:450
Battery volts:12
Battery AH:95
