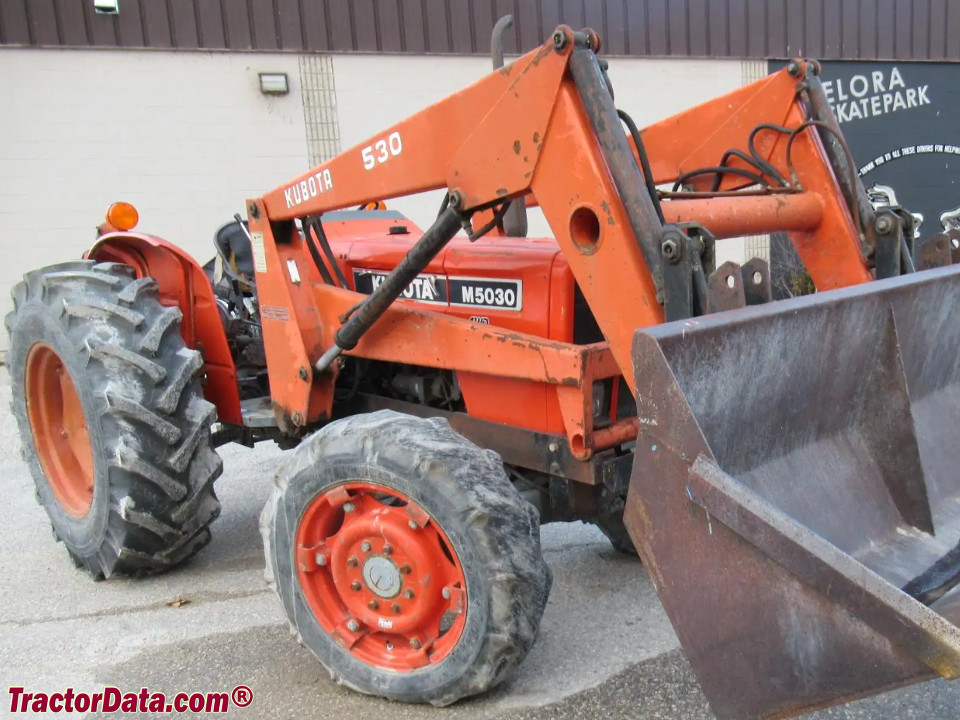

Kubota M5030
| | 1986 - 1996 |
| M30 Series | | Utility tractor |
|
| Production |
| Manufacturer | Kubota
|
| Utility tractor |
| The Kubota M5030 was available in both utility and low-profile chassis. |
| Variants |
| M5030F | 2WD
|
| M5030DT | 4WD
|
| Kubota M5030 Power |
| Engine | 54 hp
40.3 kW
|
| Drawbar (claimed) | 42 hp
31.3 kW
|
| PTO (claimed) | 49 hp
36.5 kW
|
| Drawbar (tested) | 41.27 hp
30.8 kW
|
| PTO (tested) | 49.77 hp
37.1 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | standard
|
| Power steering |
| Differential mechanical wet disc brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 16.9 gal
64.0 L
|
| 2WD Hydraulic system | 12.7 gal
48.1 L
|
| 4WD Hydraulic system | 14.9 gal
56.4 L
|
| Hydraulics |
| Type | open center
|
| 2WD Capacity | 12.7 gal
48.1 L
|
| 4WD Capacity | 14.9 gal
56.4 L
|
| Pressure | 2630 psi
181.3 bar
|
| Valves | 1
|
| Total flow | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Rear lift (at ends) | 3968 lbs
1799 kg
|
| Rear lift (at 24"/610mm) | 3,307 lbs
1500 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|

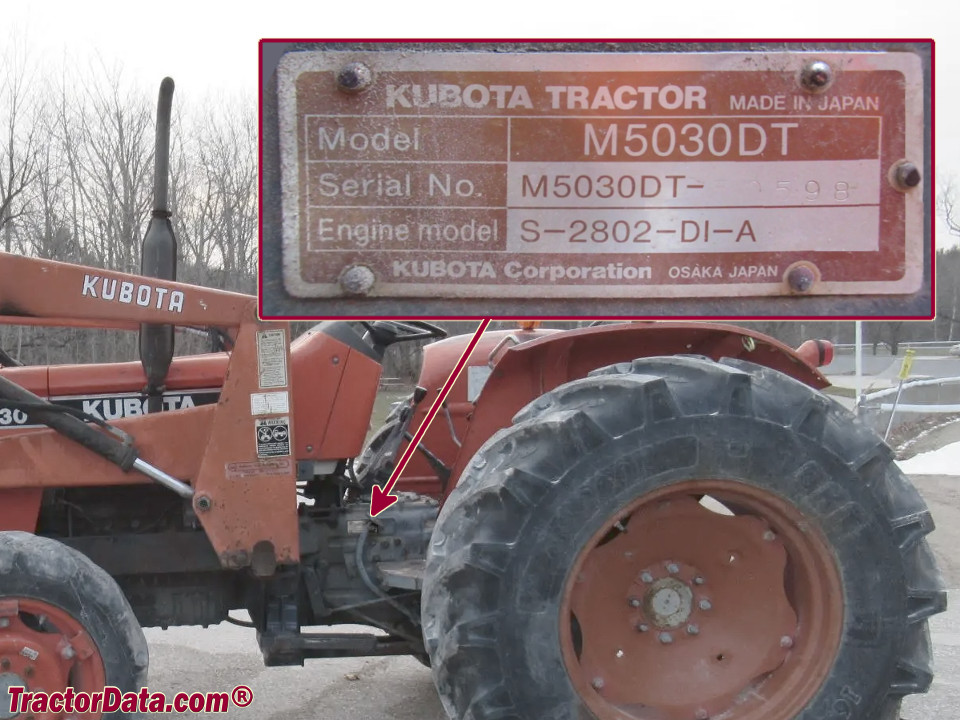

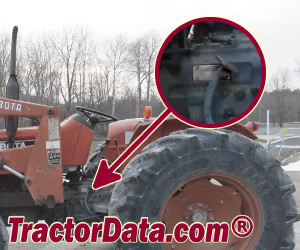

| M5030 Serial Number Location |
 |
| Serial number plate on the left side of the transmission housing. |
| References |
 |
| Front Loaders published in 1988, by Kubota |
| Front Loaders B, L and M-Series published in 1994, by Kubota* |
| Product Catalog published in 1990, by Kubota |
| M30 Series - Utility/Agri/Low Profile published in 1986, by Kubota |
| M30 Series - Utility-Agri/Low Profile/Narrow/Mudder published in 1991, by Kubota |
| *Publication contains known errors. |
