Kubota M4500

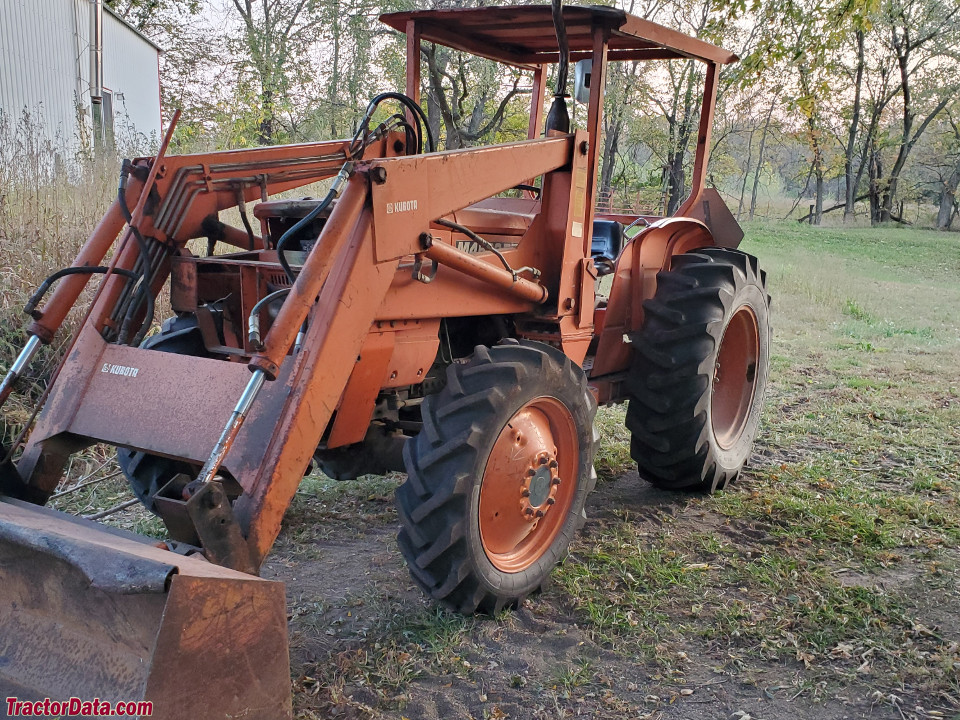

Kubota M4500 tractor photo
1978 - 1985
Utility tractor
Series:M4050M4500M5500
Production
Manufacturer:Kubota
Type:Utility tractor
Factory:Japan
Variants
M4500DT:4WD
M4500-OC:orchard tractor
Kubota M4500 Power
Engine (gross):55.5 hp
41.4 kW
PTO (claimed):49 hp
36.5 kW
Drawbar (tested):41.09 hp
30.6 kW
PTO (tested):49.72 hp
37.1 kW
power test details ...
Kubota M4500 Engine
Kubota 2.6L 6-cyl diesel
Fuel tank:14.3 gal
54.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power assist
Brakes:differential mechanical wet disc
Cab:Open operator station
Transmission:16-speed partially synchronized
Transmission details ...
Photos
No photos of the Kubota M4500 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Pressure:2485 psi
171.3 bar
Valves:1
Pump flow:7.3 gpm
27.6 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Engine RPM:540@2193
Dimensions & Tires
Wheelbase:78.2 inches
198 cm
Weight:4220 to 5165 pounds
Front tire:6.00-16
Rear tire:14.9-28
Full dimensions and tires ...
Electrical
Ground:negative
Battery
Number:1
Volts:12
