Kubota L295

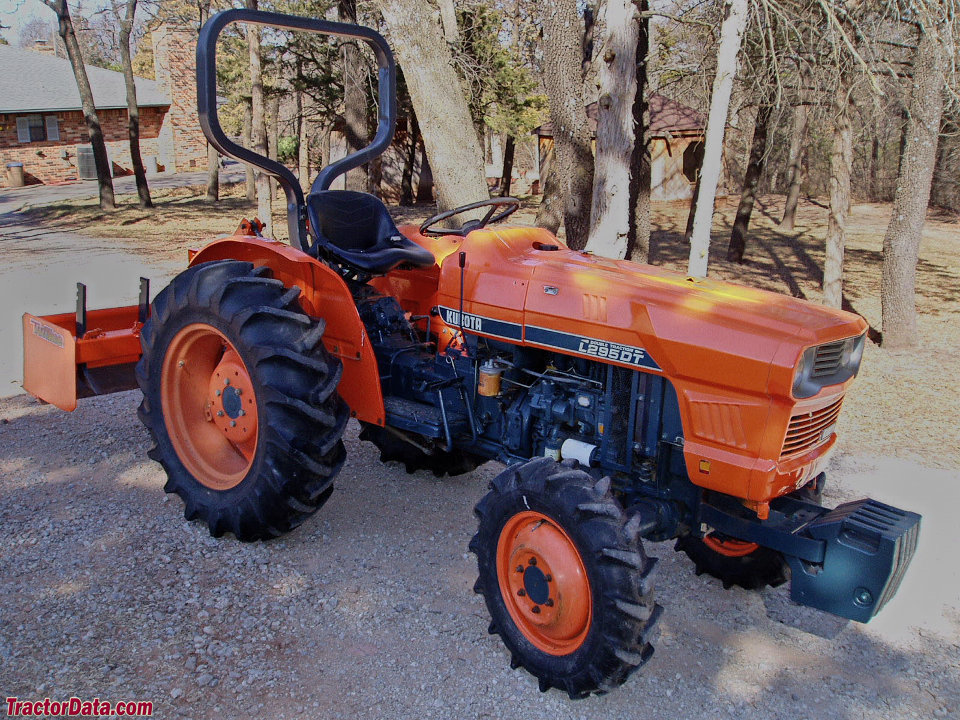

Kubota L295 tractor photo
1978 - 1982
Compact Utility tractor
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Variants
L295F:2WD
L295DT:4WD
Kubota L295 Power
Engine:30 hp
22.4 kW
PTO (claimed):26 hp
19.4 kW
Drawbar (tested):21.09 hp
15.7 kW
PTO (tested):26.46 hp
19.7 kW
power test details ...
Kubota L295 Engine
Kubota 1.3L 3-cyl diesel
Fuel tank:9.2 gal
34.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:manual
Brakes:differential mechanical wet disc
Cab:Two-post fixed ROPS.
Transmission:8-speed gear
Transmission details ...
Hydraulics
Type:open center
Pump flow:5.6 gpm
21.2 lpm
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540/700/1000
Dimensions & Tires
2WD Wheelbase:65 inches
165 cm
4WD Wheelbase:65.4 inches
166 cm
Weight:2304 to 2895 pounds
Front tire:5.00-15
2WD Rear tire:12.4-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
