    Kubota L260

    Kubota L260 tractor photo
    1970 - 1976
    Compact Utility tractor






    Production:

    Manufacturer:Kubota
    Factory:Japan


    Kubota L260 Engine:

       Kubota 1.3L 2-cyl diesel
    full engine details ...


    Capacity:

    Fuel:8 gal [30.3 L]


    3-Point Hitch:

    Rear Type:I
    Control:position and draft control
    Rear lift (at ends):2650 lbs [1202 kg]


    Power Take-off (PTO):

    Rear RPM:540 (1.375)


    Dimensions & Tires:

    Wheelbase:63 inches [160 cm]
    Weight:2640 to 4020 pounds
    Front tire:5.00-15
    Rear tire:11.2-24
    full dimensions and tires ...


    L260 Serial Numbers:

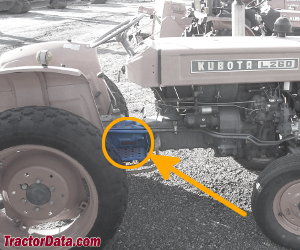

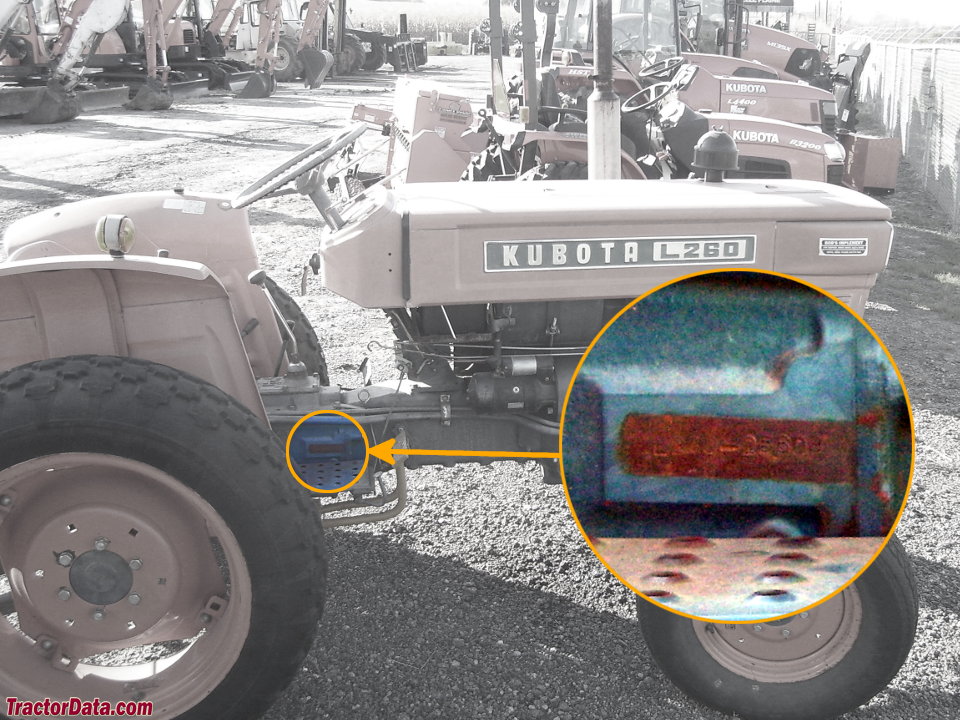

    Location:Right side of tractor frame, to the rear of the brake pedals.

    - Serial numbers unknown -



    Kubota L260 Power:

    Engine:26 hp [19.4 kW]
    Drawbar (tested):18.98 hp [14.2 kW]
    PTO (tested):24.11 hp [18.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical expanding shoe
    Cab:Open operator station. ROPS available as retro-fit.


    Hydraulics:

    Type:open center
    Pressure:1990 psi [137.2 bar]
    Total flow:4.7 gpm [17.8 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Volts:12
    Amp-hours:110
