Kubota L245
| | 1976 - 1985 |
| L Series | | Compact Utility tractor |
|
Series map:
L235
L245
L275
23.5hp
25.0hp
27.5hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Built in Japan |
| Original price was $4,000 in 1977 |
| Kubota L245 Power |
| Engine | 25 hp
18.6 kW
|
| Drawbar (claimed) | 17.8 hp
13.3 kW
|
| PTO (claimed) | 22 hp
16.4 kW
|
| Drawbar (tested) | 18.10 hp
13.5 kW
|
| PTO (tested) | 22.35 hp
16.7 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Manual steering |
| Differential mechanical wet disc brakes |
| Open operator station. Two-post ROPS optional. |
| Capacity |
| Fuel | 6 gal
22.7 L
|
| Hydraulic system | 8.7 gal
32.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 8.7 gal
32.9 L
|
| Pressure | 2000 psi
137.9 bar
|
| Total flow | 3.7 gpm
14.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at ends) | 1540 lbs
698 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2430
|
| | 702@2430
|
| | 1000@2430
|

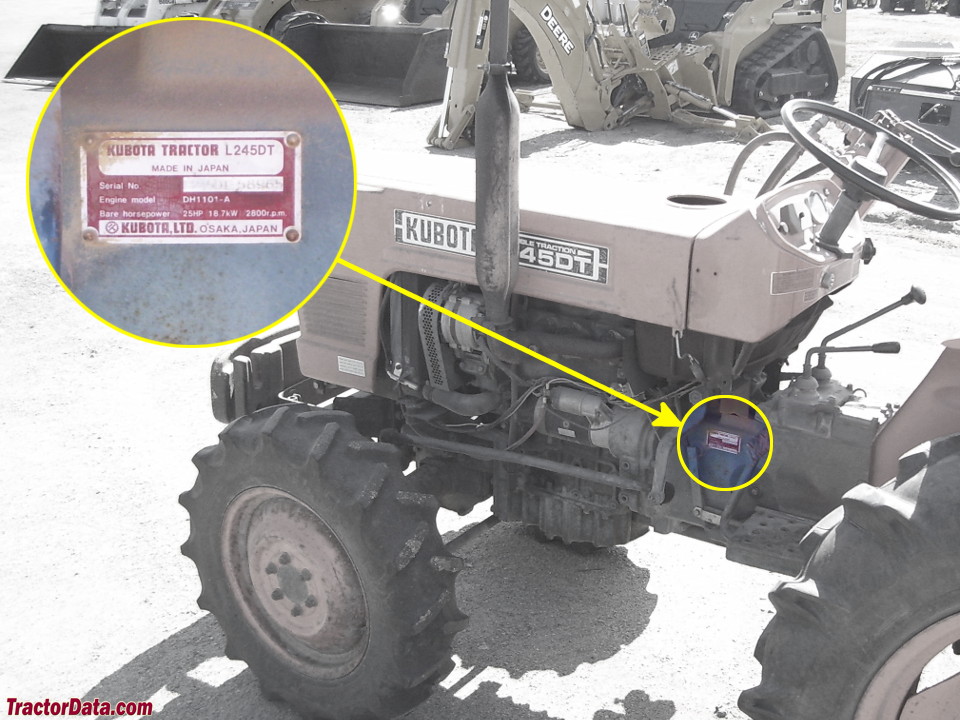

| L245 Serial Number Location |
 |
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Mid-Mount Mowers B/L Series published in 1978, by Kubota |
| Kubota's guide to orange picking published in 1979 |
| Tractors and Excavators published in 1981, by Kubota |
| Diesel Tractor L245 published in 1976, by Kubota |
| Diesel Tractor L245DT published in 1976, by Kubota |
| Diesel Tractor L245FP published in 1976, by Kubota |
| Operator's Manual Model L245 - L245DT |
| Diesel Tractor L245TP published in 1976, by Kubota |
