Kubota L185


Kubota L185 tractor photo
1977 - 1982
Compact Utility tractor
Production
ManufacturerKubota
Compact Utility tractor
Original price was $6,400 in 1982
Variants
L185TP2WD turf
L185FP2WD ag
L185DT4WD
Kubota L185 Engine
Kubota 0.7L 2-cyl diesel
Fuel tank5.8 gal
22.0 L
Engine details ...
Kubota L185 Power
Engine17 hp
12.7 kW
PTO (claimed)15 hp
11.2 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (L185DT)
Steeringmanual
Open operator station.
Tractor hitch
Rear TypeI
Controlposition control
 draft control optional
Rear lift (at ends)2200 lbs
997 kg
Power Take-off (PTO)
Rear PTOtransmission
Rear RPM540/700/1000 (1.375)
Engine RPM540@2430
702@2430
1007@2430
Front RPM2430
Dimensions & Tires
Wheelbase60 inches
152 cm
Weight1595 to 1785 pounds
Front tire4.00-15
Rear tire9.5-24 (2WD)
Full dimensions and tires ...
Kubota L185 attachments
snowblower
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Battery volts12
References

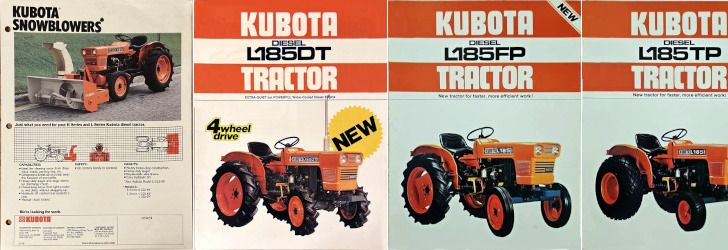

L185 references literature
Mid-Mount Mowers B/L Series published in 1978, by Kubota
