Kubota B7300
| | 1997 - 1999 |
| Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Compact Utility tractor
|
| Kubota B7300 Power |
| Engine (gross): | 16 hp
11.9 kW
|
| PTO (claimed): | 12.5 hp
9.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | spur gear
|
| Steering: | manual
|
| Brakes: | wet disc
|
| Cab: | Two-post fixed ROPS.
|
| Transmission: | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 3.9 gpm
14.8 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1100 lbs
498 kg
|
| Rear lift (at 24"/610mm): | 860 lbs
390 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 527@2900
954@2900
|
| Mid RPM: | 2500 (Kubota 1x10)
|
| Engine RPM: | 2461@2900
|
| B7300 Serial Numbers |

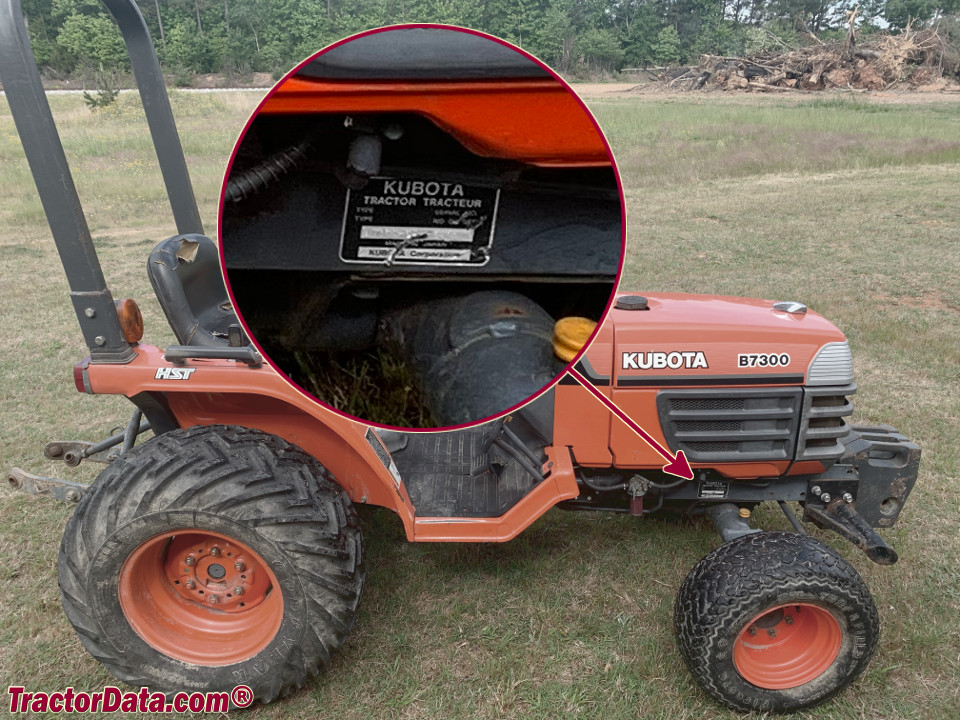

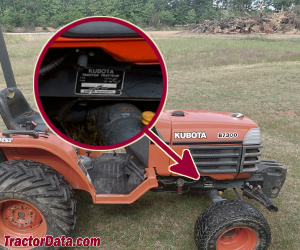

| Location: | Serial number decal on the right side of the tractor frame, above the front axle.
|
photo of B7300 serial number
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | May 15, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
