    Kubota B7200

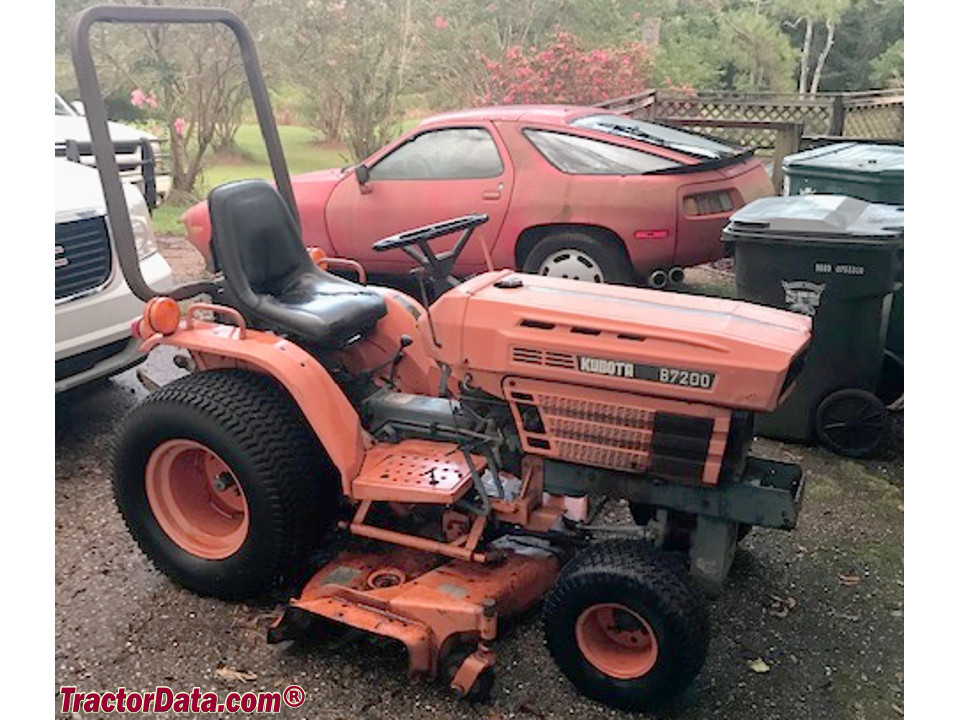

    Kubota B7200 tractor photo
    1983 - 1990
    Compact Utility tractor
    Previous model:Kubota B7100
    Next model:Kubota B1550
    Larger:Kubota B8200
    Smaller:Kubota B6200






    Production:

    Manufacturer:Kubota
    Factory:Japan
    Original price (USD):$10,500 (1990 B7200HST-D)


    Variants:

    B7200E:2WD gear
    B7200D:4WD gear
    B7200HST-E:2WD hydro
    B7200HST-D:4WD hydro


    Kubota B7200 Engine:

       Kubota 0.9L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:3.8 gal [14.4 L] (gear)
     5.3 gal [20.1 L] (hydro)
    Hydraulic system:3.2 gal [12.1 L] (gear)
     3.6 gal [13.6 L] (hydro)


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):1,036 lbs [469 kg]
    Rear lift (at 24"/610mm):705 lbs [319 kg]


    Power Take-off (PTO):

    Rear RPMs:540/825
    Mid RPMs:1,546/2,455 (hydro)
    Front PTO:optional
    Front RPMs:2500


    Dimensions & Tires:

    Wheelbase:55.1 inches [139 cm] (gear)
     57.9 inches [147 cm] (hydro)
    Weight:1113 to 1356 pounds
    Front tire:5.00-10
    Rear tire:8-16 (2WD)
    full dimensions and tires ...


    Kubota B7200 attachments:

     mowing deck
     snowblower
     front-end loader
    all B7200 attachments ...


    B7200 Serial Numbers:

    Location:Right side of transmission case
    1983: 50532
    1984: 51758
    1985: 60683
    1986: 62548
    1987: 64737
    1988: 65307
    1984: 50026 (HST)
    1985: 50711 (HST)
    1986: 52531 (HST)
    1987: 55065 (HST)
    1988: 55977 (HST)

    how to read serial numbers...



    Kubota B7200 Power:

    Engine (gross):17 hp [12.7 kW]
    PTO (claimed):14 hp [10.4 kW]
    Plows:1 (12-inch)


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (B7200D)
    Steering:manual
    Brakes:dry internal expanding
    Cab:Two-post ROPS.


    Hydraulics:

    Type:open center
    Capacity:3.2 gal [12.1 L] (gear)
     3.6 gal [13.6 L] (hydro)
    Valves:1
    Total flow:4 gpm [15.1 lpm]


    Electrical:

    Charging system:alternator
    Charging amps:35 (optional)


    Battery:

    Number:1
    Volts:12
