Tractors > Kubota > B7100

Kubota B7100 Engine



Kubota B7100 tractor photo
1976 - 1985
Compact Utility tractor
Series map:
B6100
B7100
14.0hp
16.0hp
Engine Detail
Kubota D750-A
diesel
3-cylinder
liquid-cooled
Displacement46.5 ci
0.8 L
Bore/Stroke2.68x2.76 inches
68 x 70 mm
Power (gross)16 hp
11.9 kW
Air cleanerdry
Pre-heatingglow plugs
Rated RPM2800
Firing order1-2-3
Starter volts12
Starter power1.1 hp
0.8 kW
Coolant capacity4.9 qts
4.6 L
Engine Oil

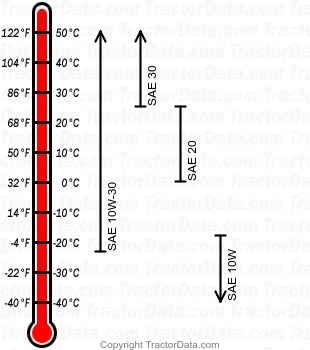

B7100 diesel engine oil chart
Oil capacity4.1 qts
3.9 L

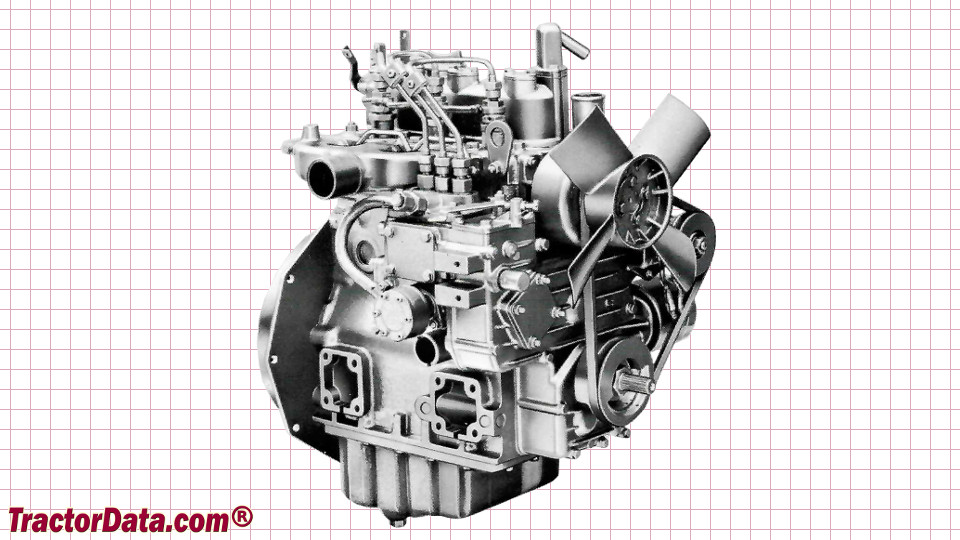

Kubota B7100 Engine
Kubota B7100 engine image
