Tractors > Kubota > B6200
      -Brand search:


    Kubota B6200

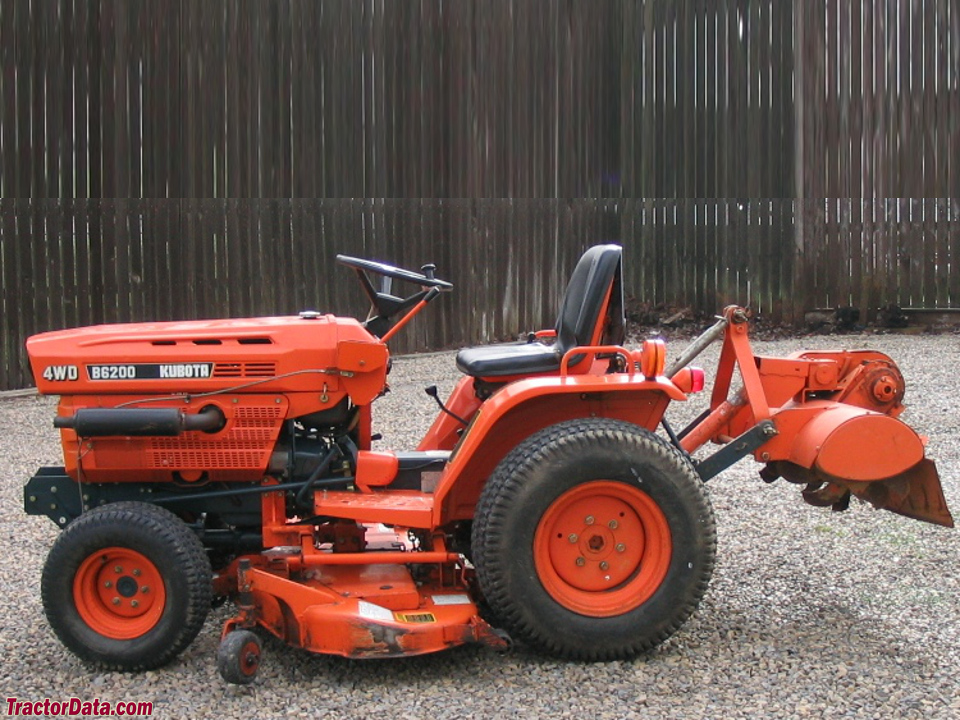

    Kubota B6200 tractor photo
    1983 - 1992
    Compact Utility tractor
    Previous model:Kubota B6100
    Series next:Kubota B7200
    Series back:Kubota B5200






    Production:

    Manufacturer:Kubota
    Factory:Japan
    Original price (USD):$10,230 (1990 B6200HST-D)


    Variants:

    B6200E:2WD gear
    B6200D:4WD gear
    B6200HST-E:2WD hydro
    B6200HST-D:4WD hydro


    Kubota B6200 Engine:

       Kubota 0.9L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:3.8 gal [14.4 L]
    Hydraulic system:3.2 gal [12.1 L] (gear)
     3.6 gal [13.6 L] (hydro)


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):1,036 lbs [469 kg]
    Rear lift (at 24"/610mm):705 lbs [319 kg]


    Power Take-off (PTO):

    Rear RPM:540/825
    Front PTO:optional
    Front RPM:2500


    Dimensions & Tires:

    Wheelbase:57.9 inches [147 cm]
    Weight:1102 to 1223 pounds
    Front tire:4.5-10
    Rear tire:7.00-16
    full dimensions and tires ...


    Kubota B6200 attachments:

     mowing deck
     snowblower
     front-end loader
    all B6200 attachments ...


    B6200 Serial Numbers:

    1983: 50001 (4WD)
    1984: 50972 (4WD)
    1985: 51943 (4WD)
    1986: 52916 (4WD)
    1987: 53886 (4WD)
    1988: 54856 (4WD)
    1983: 10001 (2WD)
    1984: 11022 (2WD)
    1985: 20183 (2WD)
    1986: 29344 (2WD)
    1987: 38505 (2WD)
    1988: 49666 (2WD)

    how to read serial numbers...



    Kubota B6200 Power:

    Engine (gross):15 hp [11.2 kW]
    PTO (claimed):12.5 hp [9.3 kW]
    Plows:1*12-inch


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (B6200D)
    Steering:manual
    Brakes:dry internal expanding
    Cab:Two-post ROPS


    Hydraulics:

    Type:open center
    Capacity:3.2 gal [12.1 L] (gear)
     3.6 gal [13.6 L] (hydro)
    Pressure:1630 psi [112.4 bar]
    Total flow:4 gpm [15.1 lpm]


    Battery:

    Number:1
    Volts:12
