Tractors > Kubota > M8200

Kubota M8200

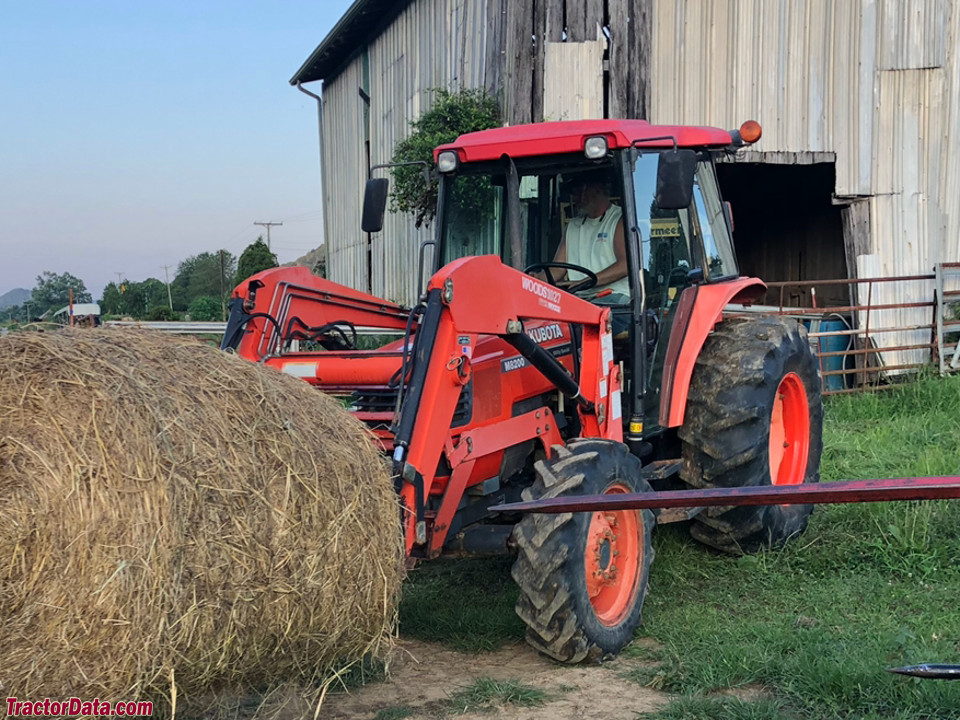

Kubota M8200 tractor photo
1997 - 2005   M Series
Utility tractor
Series next:Kubota M9000
Series back:Kubota M6800






Production:

Manufacturer:Kubota
Factory:Japan


Kubota M8200 Engine:

   Kubota 3.3L 4-cyl diesel
full engine details ...


Capacity:

ROPS Fuel:23.8 gal [90.1 L]
Cab Fuel:29.1 gal [110.1 L]
Hydraulic system:13.7 gal [51.9 L]


3-Point Hitch:

Rear Type:II
Control:position control and top-link draft sensing
Rear lift (at ends):5560 lbs [2522 kg]
Rear lift (at 24"/610mm):4630 lbs [2100 kg]
Rear Arms:telescopic stabilizers and link ends


Power Take-off (PTO):

Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540
 540/1000*Optional


Dimensions & Tires:

Wheelbase:88.6 inches [225 cm]
Weight:5585 to 6615 pounds
Front tire:7.50-18
2WD Rear tire:12.4-24
full dimensions and tires ...


Kubota M8200 attachments:

 front-end loader
all M8200 attachments ...


M8200 Serial Numbers:


- Serial numbers unknown -



Kubota M8200 Power:

Engine (gross):85.3 hp [63.6 kW]
PTO (claimed):73 hp [54.4 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:front and rear standard
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Capacity:13.7 gal [51.9 L]
Valves:1 to 3
Pump flow:17.1 gpm [64.7 lpm]


Electrical:

Charging system:alternator
ROPS Charging amps:45
Cab Charging amps:60


Battery:

Number:1
Cold-cranking amps:1000
Volts:12
