    Kubota L4310

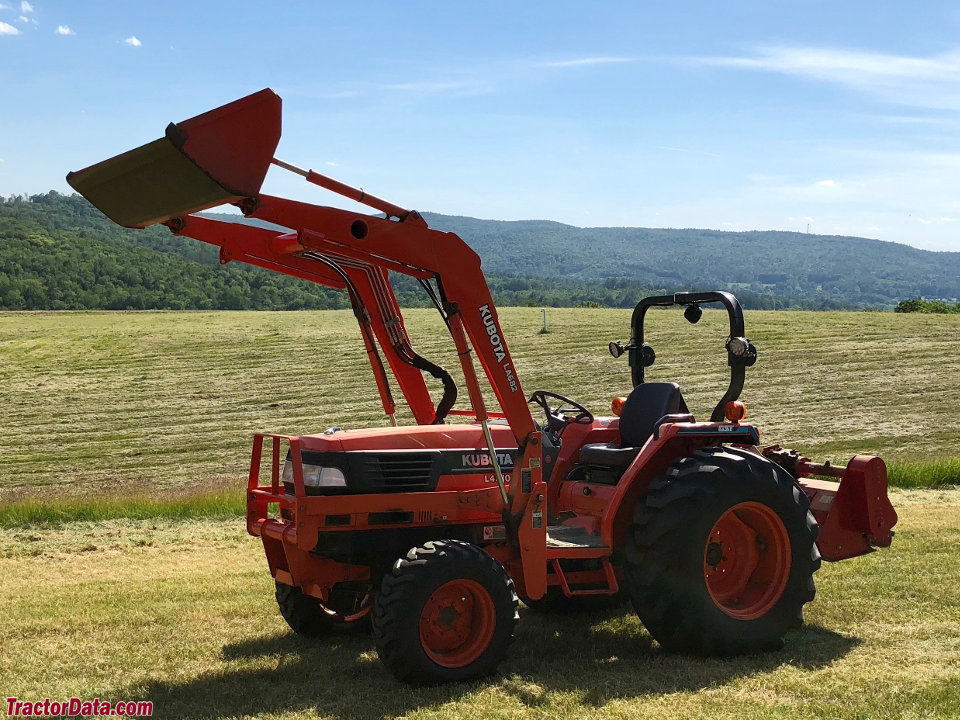

    Kubota L4310 tractor photo
    1998 - 2002   Grand L10 Series
    Compact Utility tractor
    Previous model:Kubota L4200
    Next model:Kubota L4630
    Larger:Kubota L4610
    Smaller:Kubota L3710






    Production:

    Manufacturer:Kubota


    Variants:

    L4310F:2WD
    L4310DT:4WD gear
    L4310GST:4WD Glide-Shift
    L4310HST:hydro
    L4310HSTC:hydro cab


    Kubota L4310 Engine:

       Kubota 2.2L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:9.2 gal [34.8 L]
    Hydraulic system:10.3 gal [39.0 L]


    3-Point Hitch:

    Rear Type:1
    Control:position control and optional draft control
    Rear lift (at 24"/610mm):2,310 lbs [1047 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540 (1.375)


    Dimensions & Tires:

    2WD Wheelbase:71.3 inches [181 cm]
    4WD Wheelbase:71.1 inches [180 cm]
    Weight:2875 to 3520 pounds
    Front tire:6.00-16
    Rear tire:14.9-24 (2WD)
    full dimensions and tires ...


    Kubota L4310 attachments:

     blade
     front-end loader
     backhoe
    all L4310 attachments ...


    L4310 Serial Numbers:


    - Serial numbers unknown -



    Kubota L4310 Power:

    Engine (gross):45.3 hp [33.8 kW]
    Engine (net):43 hp [32.1 kW]
    Gear PTO (claimed):37.5 hp [28.0 kW]
    Hydro PTO (claimed):36 hp [26.8 kW]


    Mechanical:

    Chassis:4x2 2WD (L4310F)
     4x4 MFWD 4WD
    Steering:hydrostatic power
    Brakes:wet disc
    Cab:Two-post ROPS. Cab optional.


    Hydraulics:

    Type:open center
    Capacity:10.3 gal [39.0 L]
    Pump flow:7.8 gpm [29.5 lpm]
    Steering flow:4.1 gpm [15.5 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:40 (ROPS)
     55 (cab)


    Battery:

    Number:1
    Cold-cranking amps:582
    Volts:12


    Page information:

    Last update:April 22, 2012
