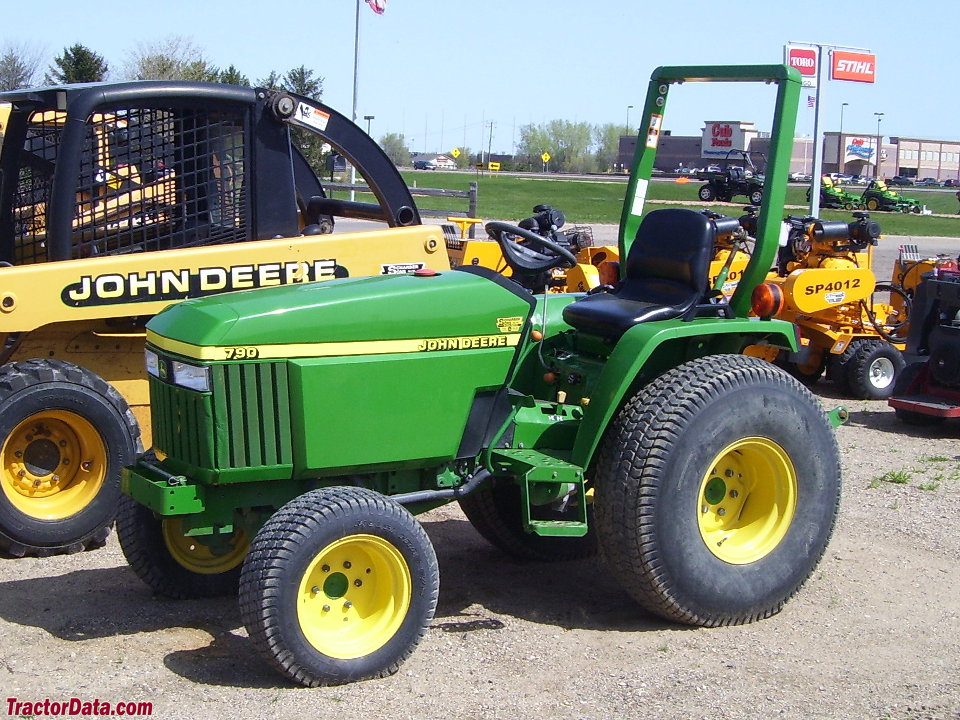

John Deere 790
| | 2000 - 2007 |
|
| Compact Utility tractor | | Yanmar built |
|
Series map:
790
990
30.0hp
40.4hp
| Production |
| Distributor | John Deere
|
| Manufacturer | Yanmar
|
| Compact Utility tractor |
| Built in Japan |
| John Deere 790 Power |
| Engine (gross) | 30 hp
22.4 kW
|
| PTO (claimed) | 26 hp
19.4 kW
|
| Mechanical |
| Two- or four-wheel drive |
| 2WD Steering | manual
|
| 4WD Steering | hydrostatic power
|
| Independent dry shoe brakes |
| ROPS |
| Capacity |
| Fuel | 6.3 gal
23.8 L
|
| Hydraulic system | 4 gal
15.1 L
|
| Front diff. | 2.32 qts
2.2 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 4 gal
15.1 L
|
| Pressure | 2050 psi
141.3 bar
|
| Pump flow | 5.4 gpm
20.4 lpm
|
| Steering flow | 4.2 gpm
15.9 lpm
|
| Steering press. | 2050 psi
141.3 bar
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 815 lbs
369 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | live (two-stage clutch)
|
| Rear PTO Type | 540
|
| Mid PTO Type | 2100
|
| 790 Serial Number Location |
 |
| Serial number plate on the rear of the tractor. |
| 790 Serial Numbers |
| 1999 | LV0790G190001
|
| 2000 | LV0790G390001
|
| 2001 | LV0790G490001
|
| 2002 | LV0790G570001
|
| 2003 | LV0790G592446
|
| 2004 | LV0790G790001
|
| 2005 | LV0790G890001
|
| 2006 | LV0790G990001
|
| 2007 | LV0790S190001
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 20
|
| Battery CCA | 500
|
| Battery volts | 12
|
| Battery Group | 45
|
| References |
 |
| Grounds Care Equipment Purchasing Guide published in 1999, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2000, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
| 4000 Series Product Information Handbook published in 2000, by John Deere |
| Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere |
| Page information |
 |
| Copyright 2023 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on September 22, 2023 |
