Tractors > CaseIH > 9270

CaseIH 9270 - tests

CaseIH 9270 tractor photo
1990 - 1995   9200 Series
Four-wheel Drive (4WD) tractor
Previous model:CaseIH 9170
Next model:CaseIH 9370
Series next:CaseIH 9280
Series back:CaseIH 9250
more CaseIH 9270 specifications...






OCED Tractor Test 1659:

Nebraska summary:114

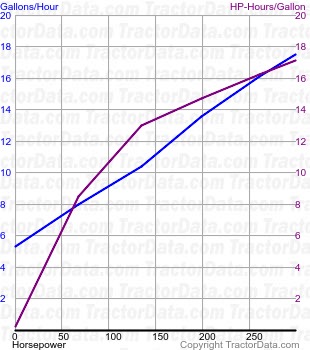

9270 fuel use from test 114
Test Date:June 16 - 19, 1992
Type:Diesel SyncroShift 4WD
PTO power (max):317.50 hp [236.8 kW]
PTO fuel use (max):17.2 gal/hour [65.1 l/hour]
PTO power (rated engine speed):299.06 hp [223.0 kW]
PTO fuel use (engine speed):17.5 gal/hour [66.2 l/hour]
Drawbar power (max):264.77 hp [197.4 kW]
Drawbar fuel use (max):17.4 gal/hour [65.9 l/hour]
Drawbar pull (max):34,197 lbs [15511 kg]
Max pull gear:A1
Test report:PDF file
