Tractors > CaseIH > 9190

CaseIH 9190 - transmission

CaseIH 9190 tractor photo
1987 - 1987   9100 Series
Four-wheel Drive (4WD) tractor
Series back:CaseIH 9180
more CaseIH 9190 specifications...






Transmission:

Manufacturer:Allison
Type:partial power shift
Gears:24 forward and 4 reverse
Six gears (1-6) plus reverse in four ranges.
Speeds:With 30.5x32 rear tires.

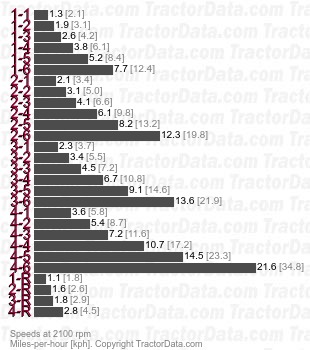

9190  partial power shift speeds
