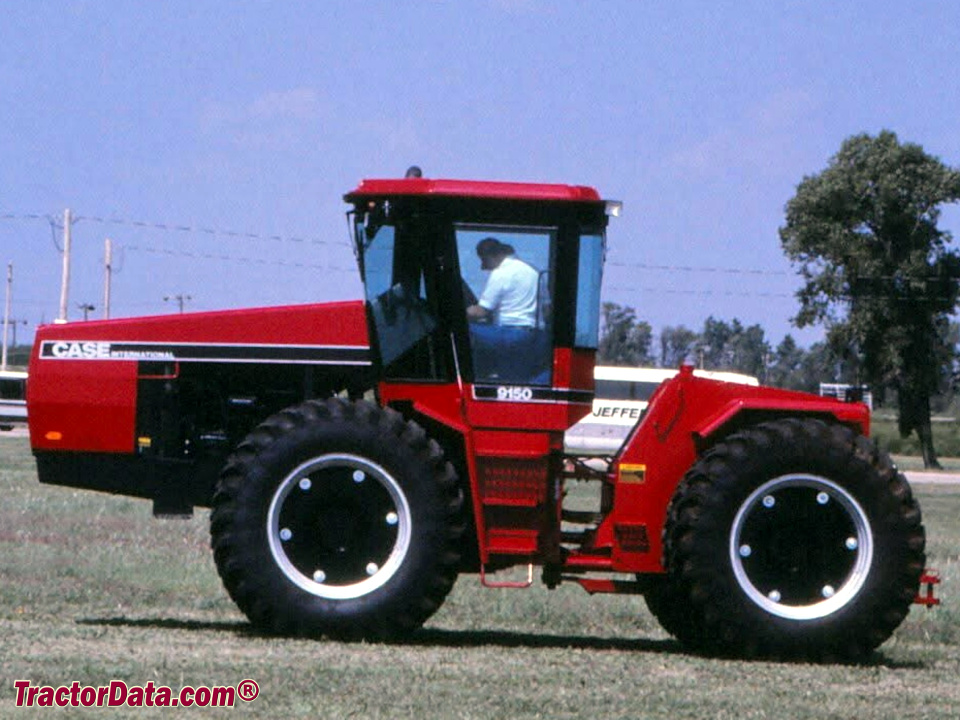

CaseIH 9150
| | 1986 - 1990 |
| 9100 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9130
9150
9170
220.0hp
280.0hp
335.0hp
| Production |
| Manufacturer | CaseIH
|
| Four-wheel Drive (4WD) tractor |
| Built in Fargo, North Dakota, USA |
| Original price was $95,000 in 1990 |
| CaseIH 9150 Power |
| Engine (gross) | 280 hp
208.8 kW
|
| PTO (claimed) | 259 hp
193.1 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| | outboard planetary OptOptional
|
| Steering | hydrostatic power
|
| Hydraulic disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 170 gal
643.5 L
|
| Hydraulic system | 18 gal
68.1 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 18 gal
68.1 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 3 to 4
|
| Total flow | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Rear Type | III OptOptional
|
| Rear lift | 12750 lbs
5783 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Rear PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 100
|
| Batteries | 3
|
| Battery volts | 12
|
| References |
 |
| 4-Wheel Drive Tractors published in 1987, by CaseIH |
| Model 9150 Tractor published in 1987, by CaseIH |
