CaseIH 4994

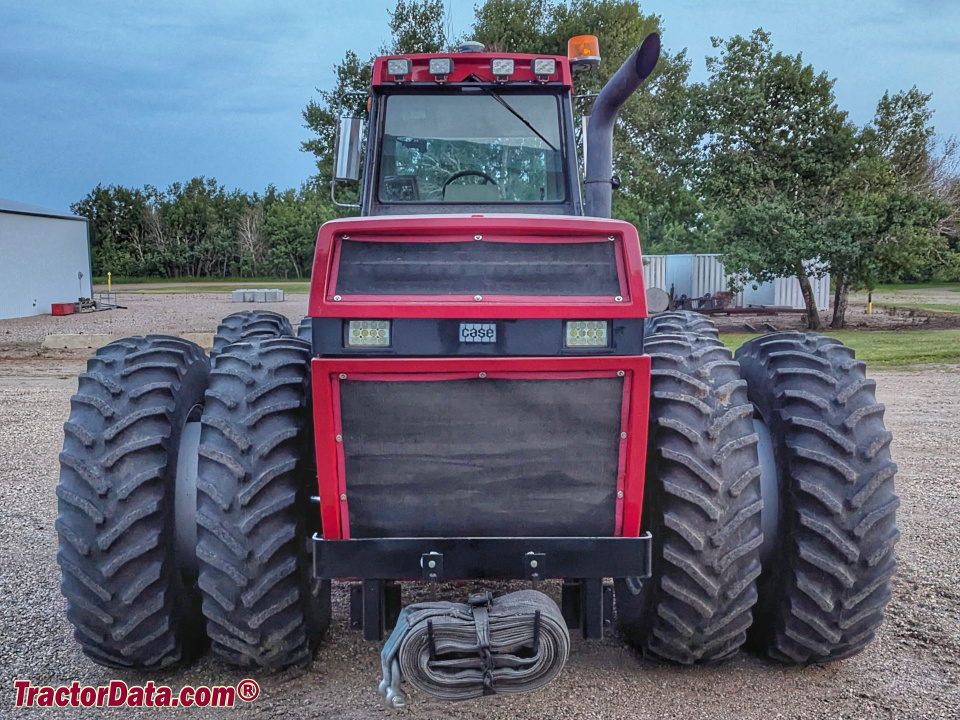

CaseIH 4994 tractor photo
1984 - 1987
4WD 94 Series
Four-wheel Drive (4WD) tractor
4994
Series:48944994
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Racine, Wisconsin, USA
Total built:224
Original price:$130,000 (1987)
CaseIH 4994 Power
Engine:400 hp
298.3 kW
PTO (claimed):344 hp
256.5 kW
Drawbar (tested):294.24 hp
219.4 kW
PTO (tested):344 hp
256.5 kW
power test details ...
CaseIH 4994 Engine
Saab-Scania 14.2L 8-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 4WD
Steering:hydraulic, front, rear or four-wheel crab steering
Brakes:hydraulic dual caliper disc
Cab:Silent Guardian cab standard
Transmission:12-speed full power shift
Transmission details ...
Photos
No photos of the CaseIH 4994 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:300 gal
1135.5 L
Hydraulic system:26.5 gal
100.3 L
Front hubs:13.5 qts
12.8 L (each)
Front diff.:17 qts
16.1 L
Rear hubs:13.5 qts
12.8 L (each)
Rear diff.:22.5 qts
21.3 L
Hydraulics
Type:closed center
Capacity:26.5 gal
100.3 L
Pressure:2000 psi
137.9 bar
Valves:4
Total flow:35 gpm
132.5 lpm
Steering flow:20 gpm
75.7 lpm
Steering press.:2000 psi
137.9 bar
Power Take-off (PTO)
Rear PTO:independent (optional)
Rear RPM:1000
Engine RPM:1000@2100
Dimensions & Tires
Wheelbase:124.8 inches
316 cm
Weight:26500 to 31315 pounds
Front tire:24.5-32
Rear tire:24.5-32
Full dimensions and tires ...
4994 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.
1984:8865000 (JI Case)
1985:8866200
1986:8866971
1987:8867559

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:105
Batteries:2
Battery volts:12
Battery AH:300
Battery Group:30H
