CaseIH 4494 - transmission

CaseIH 4494 tractor photo
1984 - 1987   4WD 94 Series
Four-wheel Drive (4WD) tractor
Previous model:J.I. Case 4494
Series next:CaseIH 4694
more CaseIH 4494 specifications...






Transmission:

Transmission:partial power shift
Gears:12 forward and 4 reverse
Clutch:hydraulic wet disc
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.

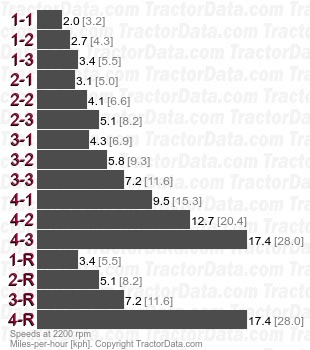

Speeds:With 23.1x30 tires.
4494 partial power shift  speeds
CaseIH 4494 partial power shift transmission photo
