CaseIH 2140 - transmission

CaseIH 2140 tractor photo
1988 - 1993   2100 Series
Orchard/Vineyard tractor
Series next:CaseIH 2150
Series back:CaseIH 2130
more CaseIH 2140 specifications...






Transmission:

Type:partially synchronized
Gears:8 forward and reverse
Clutch:280mm dry disc
2WD Oil capacity:38 qts [36.0 L]
4WD Oil capacity:40.2 qts [38.0 L]

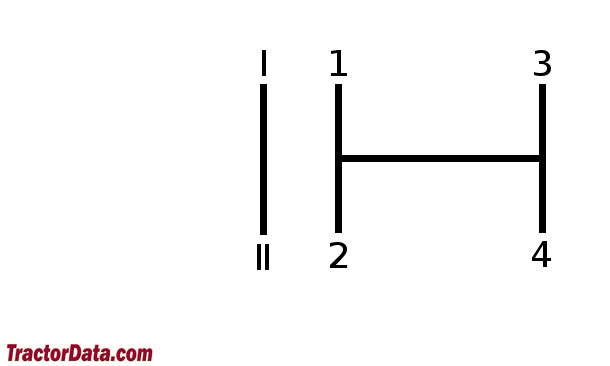

Four synchronized gears (1-4) in two ranges (I/II) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.
Speeds:With 13.6-28 rear tires. Reverse speeds are 15% slower than forward.

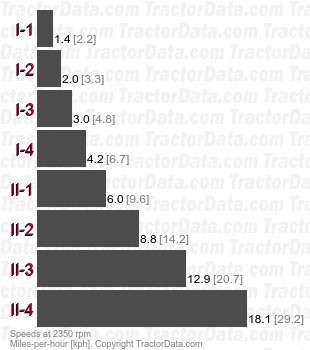

2140  partially synchronized speeds
CaseIH 2140  transmission photo



Transmission:

Type:partially synchronized
Gears:12 forward and reverse
Clutch:280mm dry disc
2WD Oil capacity:38 qts [36.0 L]
4WD Oil capacity:40.2 qts [38.0 L]

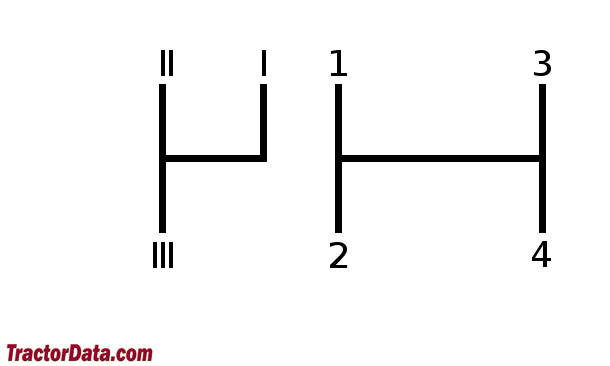

Four synchronized gears (1-4) in three ranges (I/II/III) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.
Speeds:With 13.6-28 rear tires. Reverse speeds are 15% slower than forward.

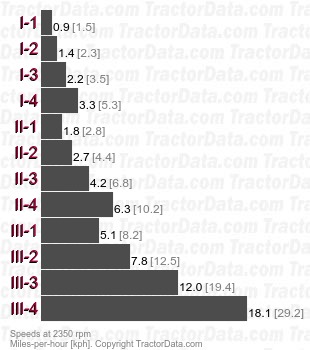

2140  partially synchronized speeds
CaseIH 2140  transmission photo
