| | 1991 - 1994 |
| 95 Utility Series | | Utility tractor |
|
| Transmissions overview |
| 8-speed partially synchronized |
| 16-speed partial power shift |
| 8-speed synchronized shuttle |
| 16-speed creeper |
| Transmission |
| Type: | partially synchronized
|
| Gears: | 8 forward and 4 reverse
|
| Clutch: | dry disc
|
| Oil capacity: | 36 qts
34.1 L
|
| Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges. |
| Speeds |
| With 18.4x30 rear tires. |
|
| Transmission |
| Type: | partial power shift
|
| Gears: | 16 forward and 8 reverse
|
| Oil capacity: | 36 qts
34.1 L
|
| Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear. |
| Speeds |
| With 18.4x30 rear tires. |
|
| Transmission |
| Type: | synchronized shuttle
|
| Gears: | 8 forward and reverse
|
| Oil capacity: | 36 qts
34.1 L
|
| Four gears each in high and low ranges, both forward and reverse. |

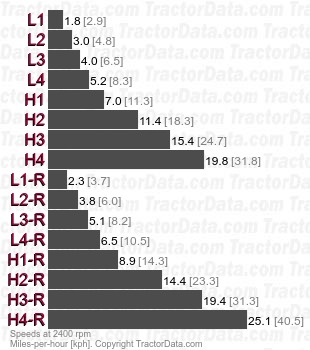

| Speeds |
| With 18.4x30 rear tires. |
|
| Transmission |
| Type: | creeper
|
| Gears: | 16 forward and 8 reverse
|
| Four gears with high, low, and reverse ranges plus direct or creeper mode. |

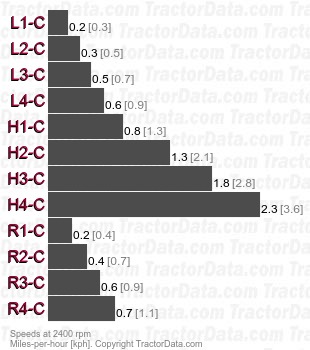

| Speeds |
|
