CaseIH 895 Transmission


CaseIH 895 tractor photo
1991 - 1994
95 Utility Series
Utility tractor
885
Series:795895995
4230
Transmissions overview
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper
Transmission
Type:partially synchronized
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:36 qts
34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
Speeds
With 18.4x30 rear tires.
895  partially synchronized speeds
Transmission
Type:partial power shift
Gears:16 forward and 8 reverse
Oil capacity:36 qts
34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
Speeds
With 18.4x30 rear tires.
895  partial power shift speeds
Transmission
Type:synchronized shuttle
Gears:8 forward and reverse
Oil capacity:36 qts
34.1 L
Four gears each in high and low ranges, both forward and reverse.
Speeds
With 18.4x30 rear tires.
895  synchronized shuttle speeds
Transmission
Type:creeper
Gears:16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
Speeds
With 18.4x30 rear tires.

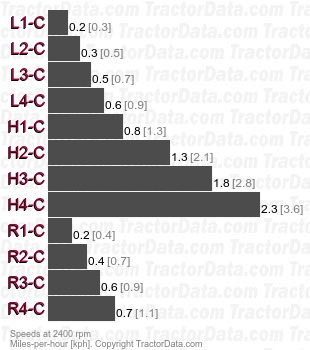

895  creeper speeds
