CaseIH 885 Transmission


CaseIH 885 tractor photo
1985 - 1990
85 Utility Series
Utility tractor
884
Series:685885985
895
Transmissions overview
8-speed synchro
16-speed two-speed power shift
8-speed shuttle
Transmission
Type:synchro
Gears:8 forward and 4 reverse
Synchronized 4-speed with high, low, and reverse ranges.
Transmission
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:305mm dry disc
Synchronized 4-speed with high, low, and reverse ranges and electric-hydraulic power shift between direct and low drive.

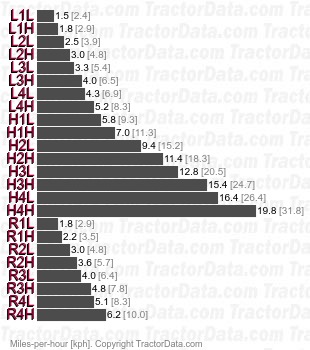

Speeds
With 18.4x30 rear tires.
885  two-speed power shift speeds
Transmission
Type:shuttle
Gears:8 forward and 4 reverse
Synchronized 4-speed with high, low, and reverse ranges and forward-reverse power shift shuttle lever.
