Tractors > CaseIH > 685
      -Brand search:


    CaseIH 685 - transmission

    CaseIH 685 tractor photo
    Production years:1985 - 1990
    Previous model:International Harvester 684
    Next model:CaseIH 695
    Tractor type:Farm/Agricultural tractor
    more CaseIH 685 specifications...






    Transmission:

    Forward:8
    Reverse:4
    Oil capacity:-unknown-


    Transmission:

    Type:partial powershift
    Forward:16
    Reverse:8
    Oil capacity:-unknown-

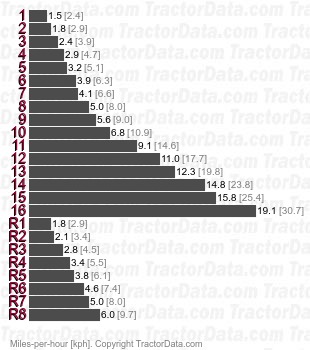

    Speeds:
    Gear
    11.5mph [2.4kph]
    21.8mph [2.9kph]
    32.4mph [3.9kph]
    42.9mph [4.7kph]
    53.2mph [5.1kph]
    63.9mph [6.3kph]
    74.1mph [6.6kph]
    85.0mph [8.0kph]
    95.6mph [9.0kph]
    106.8mph [10.9kph]
    119.1mph [14.6kph]
    1211.0mph [17.7kph]
    1312.3mph [19.8kph]
    1414.8mph [23.8kph]
    1515.8mph [25.4kph]
    1619.1mph [30.7kph]
    R11.8mph [2.9kph]
    R22.1mph [3.4kph]
    R32.8mph [4.5kph]
    R43.4mph [5.5kph]
    R53.8mph [6.1kph]
    R64.6mph [7.4kph]
    R75.0mph [8.0kph]
    R86.0mph [9.7kph]
