Tractors > CaseIH > MX270 Magnum

CaseIH MX270 Magnum - transmission

CaseIH MX270 Magnum tractor photo
1999 - 2002   Magnum Series
Row-Crop tractor
Previous model:CaseIH 8950
Next model:CaseIH MX285
Series back:CaseIH MX240
more CaseIH MX270 Magnum specifications...






Transmission:

Type:full power shift
Gears:18 forward and 4 reverse
Clutch:electro-hydrauliclly actuated wet discs
Speeds:

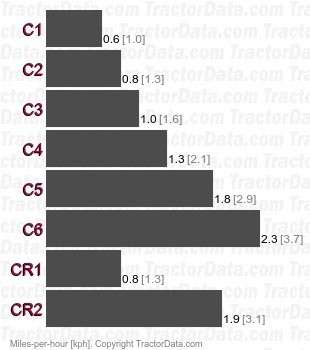

MX270 Magnum  full power shift speeds


Transmission:

Gears:24 forward and 6 reverse
